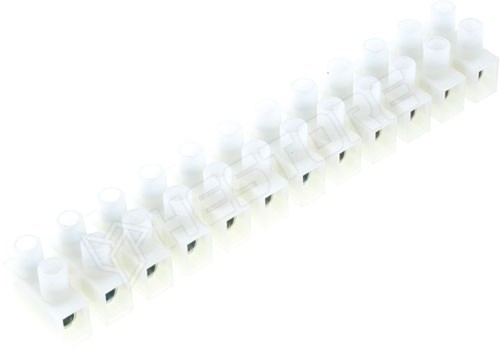

DG8HSWP-1.2/2.5

Sorkapocs, 0,5 - 2,5mm2, 450V (csoki)

Manufacturer partno	DG8HSWP-1.2-12P-17-100A(H)
RoHS	yes
Manufacturer	DEGSON ELECTRONICS
Colour	transparent
Pole	12
Gender	terminal block
Operating temperature	-40...110°C
Connector variant	terminal block, with wire protector
Electrical mounting	screw terminal
Mechanical mounting	for panel mounting, for cable, mounting holes
Length	96.05mm
Width	17.8mm
Mounting hole diameter	3mm
Rated voltage	450V
Current rating	24A
Number of ways	12
Conform to the norm	CE, UL, VDE
Contact material	phosphor bronze
Body material	Poliamid
Flammability rating	UL94V-2
Wire size	20...14AWG
Height	15.5mm
Connectors features	may be easily broken into smaller fragments
Wire cross section	0.5...2.5mm²
Number of terminals	24
Korpusz anyaga	PA66
