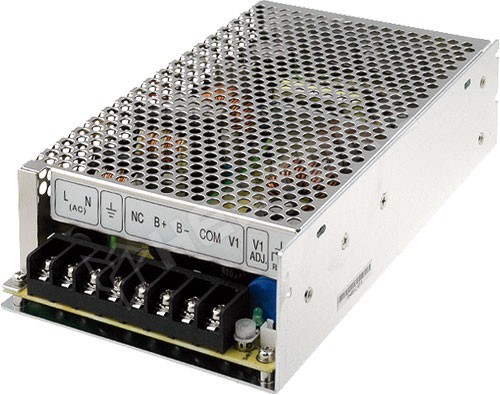

AD-55A 13,8V 3,5A

Ipari Tápegység

RoHS	no
Manufacturer	MEAN WELL
Power	51.38W
Weight	500g
Output voltage	13.8V DC, 12...14.5V DC
Series	AD-55
Mounting	mounting
Operating temperature	-10...60°C
Supply voltage	88...264V AC, 124...370V DC
Output current	3.5A
Type of power supply	buffer
Kind of power supply	modular
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit, battery low protection
Number of outputs	2
Body dimensions	159 x 97 x 38mm
Power supply/converter features	rated parameters obtained at full load
Efficiency	71%
Kind of case	901
Related items	DRL-02, DRP-03
Additional functions	UPS
Output voltage 2	13.4V DC
Output current 2	0.23A
Kind of case	901
Tápegység fajtája	modular

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.308.50

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	12 165 Ft
5+	11 507 Ft
10+	11 290 Ft
20+	11 083 Ft
50+	10 783 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 1000
