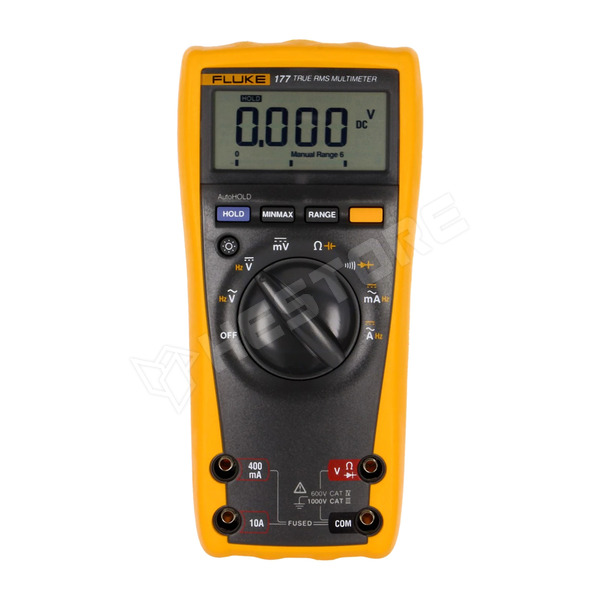

FLUKE 177

Digitális multiméter

Manufacturer partno	FLUKE 177
RoHS	yes
Manufacturer	FLUKE
Series	Fluke 170
Conform to the norm	EN61010 1000V CAT III, EN61010 600V CAT IV
Power supply	1 battery 9V 6F22
Type of meter	digital multimeter
Measuring instrument features	HOLD function, auto and manual ranging, low battery indicator, impact resistant holster, MIN/MAX/MEDIUM function, indicates incorrect connection of test leads, smoothing mode that enables to filter quick changing input signals, settable standby mode, dangerous voltage alarm (over 30V), smoothing mode that enables to filter quick changing input signals
Optional equipment	FLK-C90 soft cover, 400A AC/DC FLK-I410 current clamp probe, FLK-TLK220 set
Resistance measuring range	6kΩ, 60kΩ, 600kΩ, 6MΩ, 100mΩ...600Ω, 50MΩ
Resistance measuring accuracy	±(0,9% + 1 digit)
Capacitance measuring range	100µF, 10µF, 1...1000nF, 9999µF
Capacitance measuring accuracy	±(1,2% + 2 digits)
DC voltage measuring range	600V, 1kV, 60V, 6V, 0.1...600mV
DC voltage measuring accuracy	±(0,09% + 2 digits)
Frequency measuring range	10mHz...99.99Hz, 999.9Hz, 9.999kHz, 99.99kHz
Frequency measuring accuracy	±(0,1% + 1 digits)
Diode test	1.1mA @2.4V
Continuity test	acoustic signal for R<25Ω
Standard equipment	battery, FLK-TL75 test leads
AC current measuring range	10A, 6A, 400mA, 0.01...60mA
AC voltage measuring range	600V, 1kV, 60V, 6V, 0.1...600mV
Weight with battery	420g
AC voltage measuring accuracy	±(1% + 3 digits)
DC current measuring range	10A, 6A, 400mA, 0.01...60mA
DC current measuring accuracy	±(1% + 3 digits)
AC current measuring accuracy	±(1,5% + 3 digits)
Bargraph	33 segm. 40x/s
True effective value measurement	True RMS AC
Kind of display used	LCD 3,75 digit (6000)
Measurement	resistance, capacitance, DC voltage, AC current, AC voltage, DC current, frequency
Dimensions (W x H x D)	89x190x45mm
