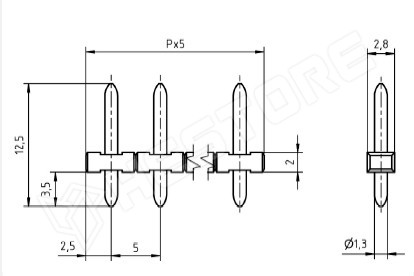

KHM 5 / 24 180° ( STL 130/24-5.0 )

Tüskesor, egyenes, RM=5mm

Manufacturer partno	TB-5.0-PIN-24
RoHS	yes
Connector	pin header
Colour	black
Connector variant	pin strips
Kind of connector	male
Number of pins	24
Electrical mounting	THT
Mechanical mounting	on PCBs
Spatial orientation	straight
Contacts pitch	5mm
Type of pin configuration	1x24
Rated voltage	300V
Current rating	16A
Contact plating	tinned
Number of ways	24
Contact material	brass
Body material	polyamide
Connectors features	may be easily broken into smaller fragments
Locking system	friction lock

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.306.00

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	547 Ft
10+	347 Ft
50+	327 Ft
100+	320 Ft
200+	313 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 7500
