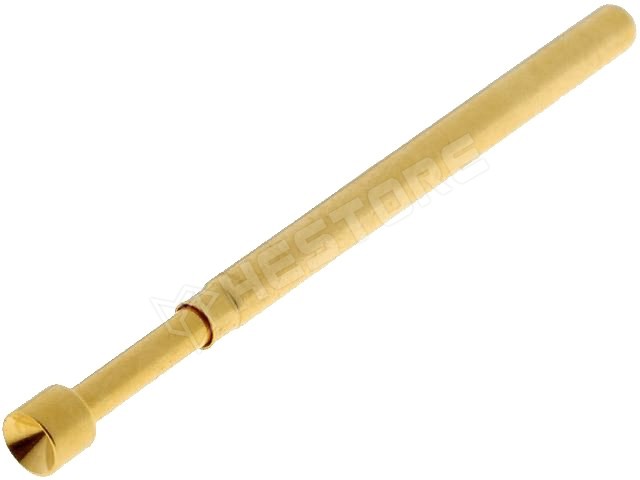

IT125-P22

Tesztelő tű; 10A; Raszter min:3,17mm; Érintkező ell.max:9mOhm

RoHS	yes
Operating temperature	5...120°C
Current rating	10A
Contact plating	gold-plated, nickel plated
Contact material	beryl bronze
Max. contact resistance:	9mΩ
Type of test accessories	test probe
Blade tip shape	head 22
Minimum pitch	3.17mm
Test probes series	123-25
Maksimum spring compression	6.35mm
Operational spring compression	6.35mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.305.86

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 767 Ft
5+	1 535 Ft
10+	1 488 Ft
20+	1 452 Ft
50+	1 408 Ft
