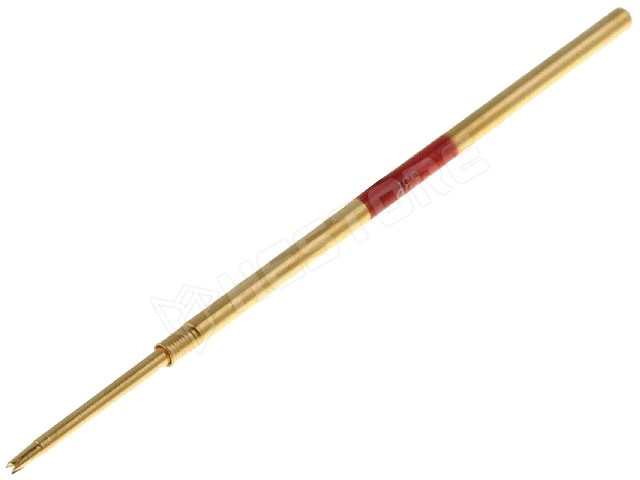

IT075-P84

Tesztelő tű; 6A; Raszter min:1,91mm; Érintkező ell.max:2,5mOhm

RoHS	yes
Operating temperature	5...120°C
Current rating	6A
Contact plating	gold-plated, nickel plated
Contact material	beryl bronze
Max. contact resistance:	2.5MΩ, 2.5mΩ
Type of test accessories	test probe
Blade tip shape	head 84
Minimum pitch	1.91mm
Test probes series	075-25
Maksimum spring compression	6.35mm
Operational spring compression	4.24mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.305.78

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 596 Ft
5+	1 371 Ft
10+	1 328 Ft
20+	1 294 Ft
50+	1 254 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 250
