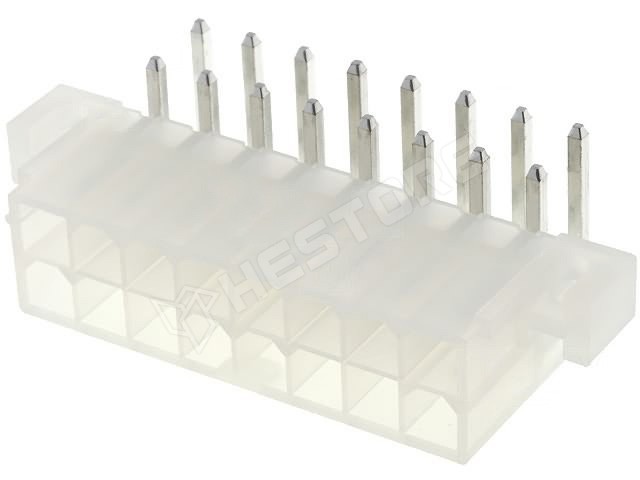

MX-5569-16A1

Mini-Fit 16pin male, 90°

Manufacturer partno	39-29-1168
RoHS	yes
Manufacturer	MOLEX
Connector	socket
Connector variant	wire-board
Kind of connector	male
Number of pins	16
Electrical mounting	THT
Mechanical mounting	holder, holders
Spatial orientation	angled 90°
Contacts pitch	4.2mm
Type of pin configuration	2x8
Rated voltage	600V
Contact plating	tinned
Maximum current	9A
Flammability rating	UL94V-2
Connector series	Mini-Fit Jr.
Locking system	terminal, latch
Kind of connector	male
Engineering PN	5569-16A1
Type of connector	wire-board
Alias	39291168

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: Molex, LLC
Postal address: 2222 Wellington Court, Lisle, IL 60532, USA
Electronic address: https://www.molex.com/

Part.No: 100.303.87

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 196 Ft
5+	988 Ft
10+	951 Ft
20+	924 Ft
50+	893 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5

Any questions?

Recommended accessory products

MX-5557-16R
Mini-Fit 16pin female
