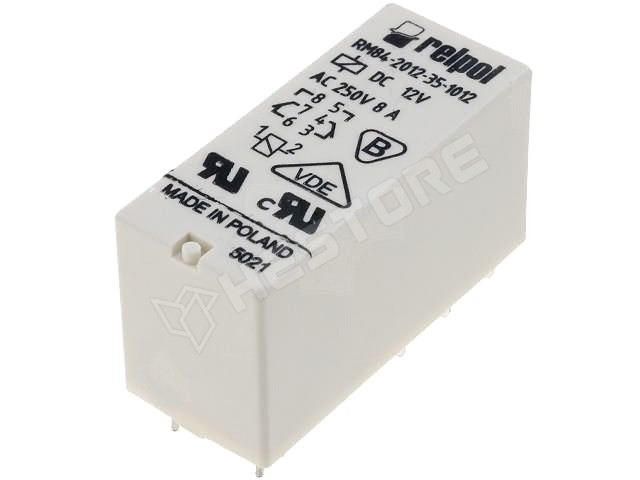

RM84P-12V

Relé 12V 2 ÁK DPDT 250VAC8A

Manufacturer partno	RM84-2012-35-1012
RoHS	yes
Manufacturer	RELPOL
Case	JS
Current	8A
Coil	12V DC
Contact	DPDT
Voltage	250V AC
Weight	14g
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...85°C
Number of pins	8
Body dimensions	29 x 12.7 x 15.7mm
Related items	GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80
IP rating	IP67
Mechanical durability	30000000cycles
Contact material	AgNi
Contacts configuration	DPDT
Height	15.7mm
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	8A
Switched voltage	max 440V AC, max 250V DC
Relay variant	miniature
Coil resistance	360Ω
Coil voltage min.	8.4V DC
Coil voltage max.	30.6V DC
Operate time	7ms
Release time	3ms
Coil power consumption	480mW
Relay series	RM84
Contact resistance	100mΩ
DC contacts rating @R	8A / 24V DC
AC contacts rating @R	8A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.292.30

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	795 Ft
5+	603 Ft
10+	572 Ft
20+	552 Ft
50+	532 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 15
3 workdays	> 10000

Any questions?

Alternatives, similar/substitute products

G2RL-2-12V
Relay, DPDT, 12V DC, 8A / 250V AC, 8A / 24V DC

LMR2-12D
Relé 12V 2 ÁK DPDT 250VAC 5A

FTR-F1 C A 012 V
Relay, DPDT, 12V DC, 5 A / 250 VAC, 5 A / 24 VDC, 5A / 250V AC, 5A / 24V DC
