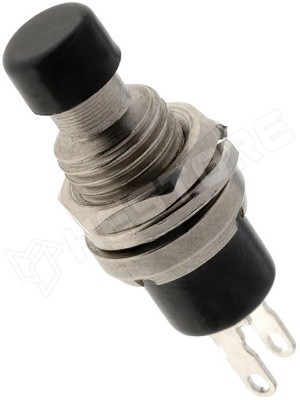

PS 10C BK

Nyomógomb, fekete, nyitó

Manufacturer partno	PS10C2BK
RoHS	yes
Manufacturer	NINIGI
Mounting	for panel mounting
Operating temperature	-25...70°C
Body dimensions	Ø9.2 x 27.5mm, Ø9.2x27.5mm
Leads	for soldering
Type of switch	push-button
Stable positions number	1-position
Switching method	ON-(OFF)
Body material	metal-plastic
Contacts configuration	SPST-NC
Mounting hole diameter	Ø7mm
AC contacts rating	1 A / 250 VAC
Max. contact resistance:	20mΩ
Electrical life	50000 cycles
Actuator colour	black
Height above panel	12mm
Button shape	round, prominent
AC contacts rating @R	1A / 250V AC
Összes pozíciók száma	2
Light	none
Korpusz anyaga	metal-plastic

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.279.83

Add to favorites

Quantity (pcs):

Packing:
250 pcs / carton

Unit price excl. VAT

1+	465 Ft
5+	291 Ft
10+	266 Ft
20+	251 Ft
50+	238 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 1000
