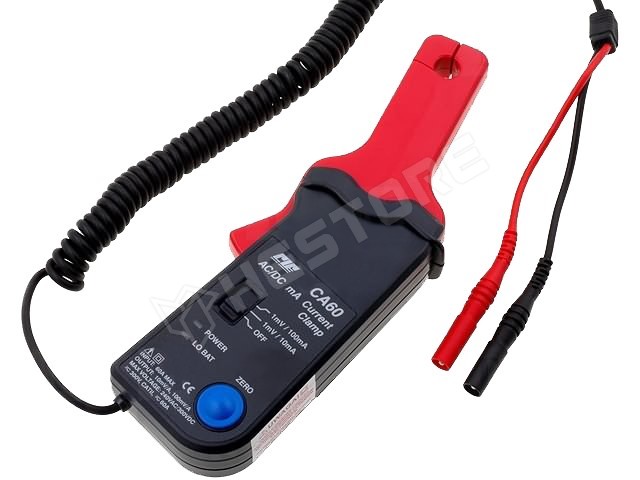

CIE 60
Lakatfogós adapter (60A)
Multiméterhez kapcsolható lakatfogós adapter.
Current ratio : 10:1, 100:1
Max. conductor diameter : 9 mm
Power requirements : 9 V battery
Battery operating life : approx 100 hrs for typical zinc-carbon battery
Low battery indicator : red LED
Must be connected to any DMM with input impedance > 1 MOhm on DCV/ACV ranges
Dimensions : 195 x 70 x 33 mm
Weight : 250 g
DC A
Ranges : 0 .. 60A
Current ratio : 1mV/10mA
Accuracy : ±(1,5%+5mA) 10mA÷20A
Current ratio : 1mV/100mA
Accuracy :
±(2%+20mA) 100mA÷40A
±(4%+0,3A) 40A÷60A
AC A
Ranges : 0 .. 60A (40Hz÷20kHz)
Current ratio : 1mV/10mA
Accuracy :
±(2%+5mA) 10mA÷10A < 2kHz
±(8%+30mA)10A÷15A <20kHz
±(6%+2A) 500÷600A
Current ratio : 1mV/100mA
Accuracy :
(2%+30mA) 100mA÷40A 1kHz
(8%+0,3A) 40A÷60A 55kHz
Current ratio : 10:1, 100:1
Max. conductor diameter : 9 mm
Power requirements : 9 V battery
Battery operating life : approx 100 hrs for typical zinc-carbon battery
Low battery indicator : red LED
Must be connected to any DMM with input impedance > 1 MOhm on DCV/ACV ranges
Dimensions : 195 x 70 x 33 mm
Weight : 250 g
DC A
Ranges : 0 .. 60A
Current ratio : 1mV/10mA
Accuracy : ±(1,5%+5mA) 10mA÷20A
Current ratio : 1mV/100mA
Accuracy :
±(2%+20mA) 100mA÷40A
±(4%+0,3A) 40A÷60A
AC A
Ranges : 0 .. 60A (40Hz÷20kHz)
Current ratio : 1mV/10mA
Accuracy :
±(2%+5mA) 10mA÷10A < 2kHz
±(8%+30mA)10A÷15A <20kHz
±(6%+2A) 500÷600A
Current ratio : 1mV/100mA
Accuracy :
(2%+30mA) 100mA÷40A 1kHz
(8%+0,3A) 40A÷60A 55kHz
| RoHS | no |
|---|---|
| Manufacturer | CIE |
| Dimensions | 195x70x33mm |
| Conform to the norm | EN61010 300V CAT II |
| Cable length | 1m |
| Power supply | 1 battery 9V 6F22 |
| Type of test accessories | AC áram lakatfogó adapter |
| Measuring instrument features | display zeroing function in DCA measurements, low battery display |
| AC current measuring range | 100m...60A (10mV/1A), 10m...15A (100mV/1A) |
| Weight with battery | 250g |
| DC current measuring range | 100m...60A (10mV/1A), 10m...20A (100mV/1A) |
| DC current measuring accuracy | ±(1,5% + 5mA) (100mV/1A), ±(2% + 20mA) (10mV/1A) |
| AC current measuring accuracy | ±(2% + 5mA) (100mV/1A) |
| Max. diameter of measured cable | 9mm |
| Output signal | 100mV/1A (60A AC/DC), 10mV/1A (15A AC / 20A DC) |
| Measurement | AC current, DC current |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.275.60
Quantity (pcs):
Unit price excl. VAT
| 1+ | 29 218 Ft |
|---|---|
| 5+ | 27 861 Ft |
| 10+ | 27 364 Ft |
| 20+ | 26 878 Ft |
| 50+ | 26 159 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| 3 workdays | > 1 |
