Main category » Optoelectronics » LEDs » High brightness LEDs »

OS5RPMA162A-LM

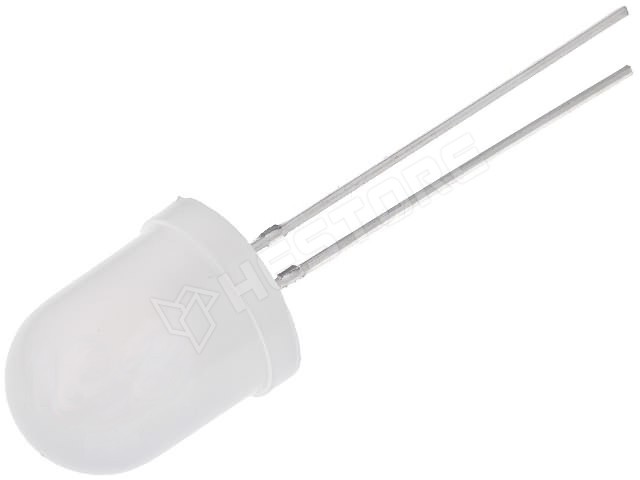

LED 10 mm, PIROS, diff.

Manufacturer partno	OS5RPMA162A-LM
RoHS	yes
Manufacturer	OPTOSUPPLY
Case	LED10
Type of diode	LED
Mounting	THT
Operating voltage	1.8...2.4V
Terminal pitch	2.54mm
LED diameter	10mm
LED colour	red
Luminosity	1120-1560mcd
Viewing angle	60°
Front	convex
Wavelength	620-630nm
LED lens	diffused, white
LED current	20mA

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.267.65

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	$ 0.451
5+	$ 0.282
10+	$ 0.217
20+	$ 0.183
50+	$ 0.161

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 100
3 workdays	> 450
