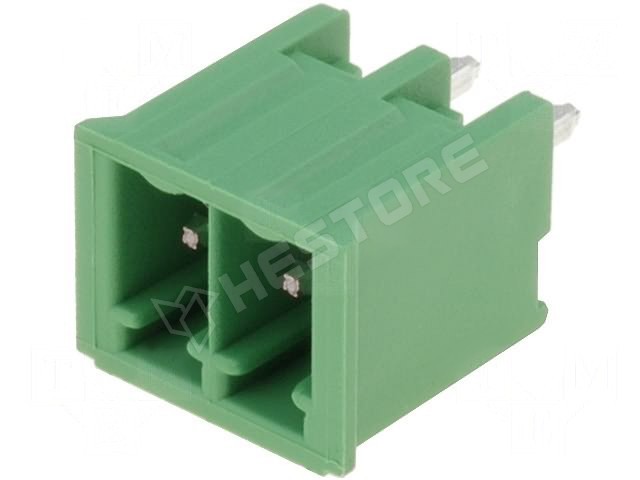

TBG3.5PW-2

Name: TBG3.5PW-2
Brand: NINIGI
SKU: 100.266.44
Availability: InStock

Sorkapocs, egyenes RM3,5 2P zárt

Csatlakozó típusa : bontható sorkapocs
Csatlakozó : aljzat, apa
Térbeli orientáció : egyenes
Érintkező raszter : 3,5 mm
Pólusok száma : 2
Névleges áram : 11 A
Névleges feszültség : 300V
Éghetőségi fokozat : UL94V-0
Szín : zöld
Ház anyaga : poliamid
Üzemi hőmérséklet : -40 .. 105 °C
Hossz : 9 mm
Magasság : 9,2 mm
Mélység : 7,3 mm

RoHS	yes
Manufacturer	NINIGI, TE Connectivity
Connector	socket
Colour	green
Pole	2
Orientation	straight
Pitch	3.5
Gender	papa
Operating temperature	-40...105°C
Connector variant	pluggable terminal block
Kind of connector	male
Number of pins	2
Electrical mounting	THT
Mechanical mounting	on PCBs
Length	9mm
Spatial orientation	straight
Contacts pitch	3.5mm
Type of pin configuration	1x2
Rated voltage	300V
Current rating	11A
Contact plating	tinned
Number of ways	2
Conform to the norm	UL
Contact material	phosphor bronze
Body material	Poliamid
Flammability rating	UL94V-0
Height	9.2mm
Depth	7.3mm
Locking system	friction lock
Kind of connector	male
Korpusz anyaga	Poliamid

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.266.44

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	378 Ft (298 Ft +VAT)
5+	236 Ft (186 Ft +VAT)
10+	207 Ft (163 Ft +VAT)
20+	190 Ft (150 Ft +VAT)
50+	177 Ft (140 Ft +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
3 workdays	> 1000
