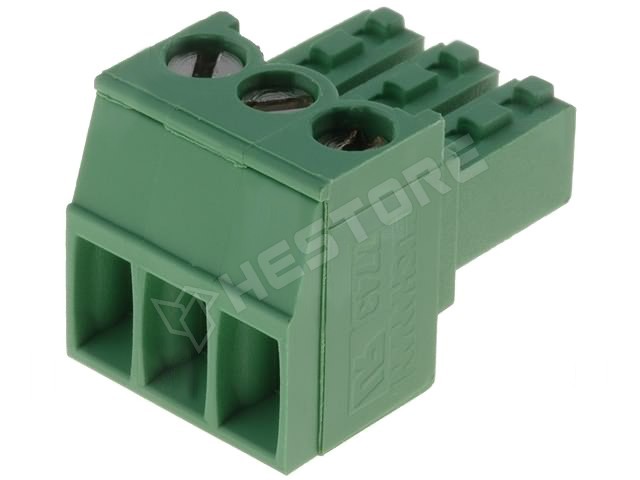

TBW3.5AMP-3

Rátolható sorkapocs 90° RM3,5 3P

RoHS	yes
Manufacturer	TYCO, TE Connectivity
Case	RM3.5
Connector	plug
Colour	green
Pole	3
Pitch	3.5
Gender	mama
Operating temperature	-40...105°C
Connector variant	pluggable terminal block
Kind of connector	female
Electrical mounting	screw terminal
Mechanical mounting	for cable
Length	10.5mm
Spatial orientation	straight
Contacts pitch	3.5mm
Type of pin configuration	1x3
Rated voltage	300V
Current rating	11A
Contact plating	tinned
Number of ways	3
Conform to the norm	UL
Contact material	phosphor bronze
Body material	Poliamid
Flammability rating	UL94V-0
Wire size	30...14AWG
Height	11.1mm
Depth	15.5mm
Locking system	friction lock
Number of terminals	3
Kind of connector	female
Korpusz anyaga	Poliamid
