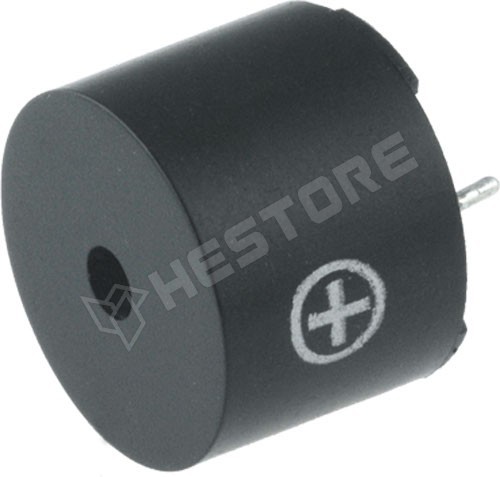

BMT-0903H5.5

Name: BMT-0903H5.5
Brand: BESTAR
SKU: 100.265.55
Availability: InStock

Elektromágneses hangjelző, gerjesztő áramkör nélkül

Dimension : Ø9 × 5.5 mm
Frequency : 2.73 kHz
Rated voltage [V AC] : 3 V AC
Current : 80mA
Temperature range : -25°C..+70°C

RoHS	no
Manufacturer	BESTAR, LOUDITY
Diameter	9mm
Mounting	THT
Operating voltage	2...6V AC, 2...4V AC
Terminal pitch	4mm
Operating temperature	-25...70°C, -20...70°C
Operating current	60mA, 80mA
Resonant frequency	2.73kHz
Height	5.5mm
Type of sound transducer	electromagnetic
Sound level	82dB, 85dB
Sound transducer features	without built-in generator
Coil resistance	25Ω
Coil resistance tolerance	±4Ω, ±3Ω

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.265.55

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	£ 0.227
10+	£ 0.142
50+	£ 0.104
100+	£ 0.097
200+	£ 0.094

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 75
3 workdays	> 5000
10-15 workdays	> 50000
