DHP9-09F 7.2

Name: DHP9-09F 7.2
Brand: NINIGI
SKU: 100.264.82
Availability: InStock

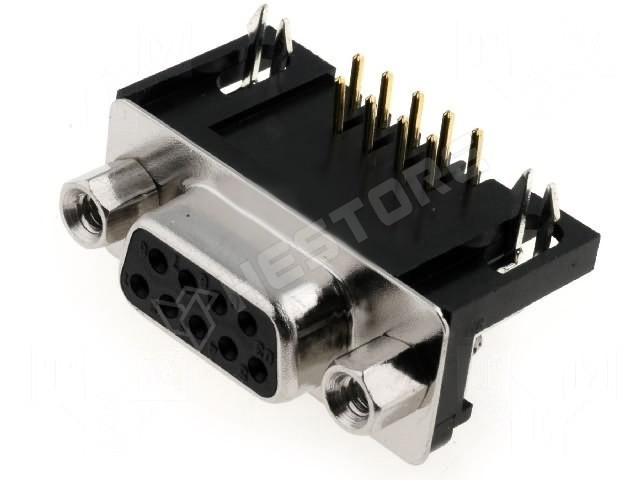

D-SUB socket (DB9), 9 pole, 90° orientation, female

9 pólus 2sorban
NYÁK-ba forrasztható

Manufacturer partno	DS1037-09FNAKT74-0CC
RoHS	yes
Manufacturer	NINIGI, CONNFLY
Connector	socket
Thread	UNC4-40
Operating temperature	-55...105°C
Connector variant	D-Sub, 9,4mm standard
Kind of connector	female
Number of pins	9
Electrical mounting	THT
Spatial orientation	angled 90°
Locking system	screws
Kind of connector	female

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.264.82

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	£ 1.124
5+	£ 0.736
10+	£ 0.679
20+	£ 0.644
50+	£ 0.614

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
10-15 workdays	> 5000
