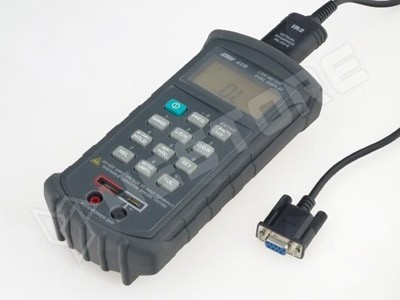

The CHY41 portable, professional LCR bridge is designed for precision measuring of resistance, capacitance and inductance.
Measure also quality factor Q and loss tangent D.
The measures are effectuated with two different measuring frequencies 1 kHz and 120 kHz.
Fitted with large display, autoranging and RS232 interface

Features:
- double backlit display 4, 5 digit (19999) at R, L, C measurement and 4 digit (9999) at simultaneous measurement of Q, D, R
- resolutions 0,001W, 0,1 ľH, 0,1 pF
- measured parameters: Ls (Q, D, Rs), Lp (Q, D, Rp), Cs (Q, D, Cs), Cp (Q, D, Rp)
- measuring frequency: 1 kHz and 120 Hz
- auto or manual ranging
- update rate: 1x/s
Special functions:
- APO - auto-power off after 10 min. of idling
- MAX/MIN/AVG - memorises: min., max and average values
- REL, SET REL - relative measurement
- PAL/SER - selection of parallel or serial circuit
- Hi/Lo Limits - selection of alarm limits
- TOL - measurement of measured tolerances
- FUSE - fuse state detection
Characteristics:
Inductance
Range 1 kHz 120 Hz
10000H - not determined
2000H not determined ą(1,0%+5 digits)
200H ą(1,0%+ 5 digits) ą 0,7%+ 5 digits)
20H ą(0,7%+ 5 digits) ą(0,7%+ 5 digits)
2000mH ą(0,7%+ 5 digits) ą(0,7%+ 5 digits)
200mH ą(0,7%+ 5 digits) ą(1,0%+ 5 digits)
20mH ą(1,2%+ 5 digits) ą(2,0%+ 5 digits)
2000ľH ą(2,0%+ 5 digits)

Capacitance
Range 1 kHz 120 Hz
20mF - ą(5,0%+ 5 digits)(DF


Standard equipment:
- test leads
- holster with bracket
- battery
- software + optocable
- manual
