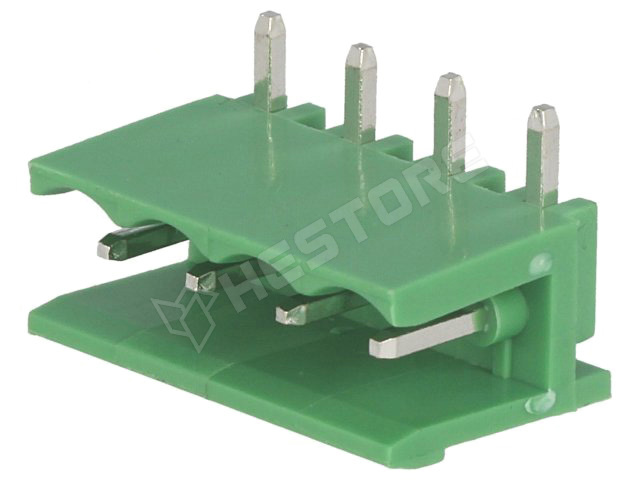

PH04-5,08

Tüskesor 90° RM5,08 4P sorolható

RoHS	no
Manufacturer	NINIGI
Connector	socket
Colour	green
Pole	4
Pitch	5.08
Gender	papa
Operating temperature	-40...105°C
Connector variant	pluggable terminal block, without side walls
Kind of connector	male
Number of pins	4
Electrical mounting	THT
Mechanical mounting	on PCBs
Length	20.32mm
Spatial orientation	angled 90°
Contacts pitch	5.08mm
Type of pin configuration	1x4
Rated voltage	300V
Current rating	15A
Contact plating	tinned
Number of ways	4
Contact material	brass
Body material	Poliamid
Soldering temperature	250°C / 5 s
Flammability rating	UL94V-0
Height	8mm
Connectors features	assembling possibility
Depth	12.3mm
Locking system	friction lock
Kind of connector	male
Korpusz anyaga	Poliamid

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.245.38

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	164 Ft
5+	102 Ft
10+	80,17 Ft
20+	68,64 Ft
50+	60,80 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 1000
