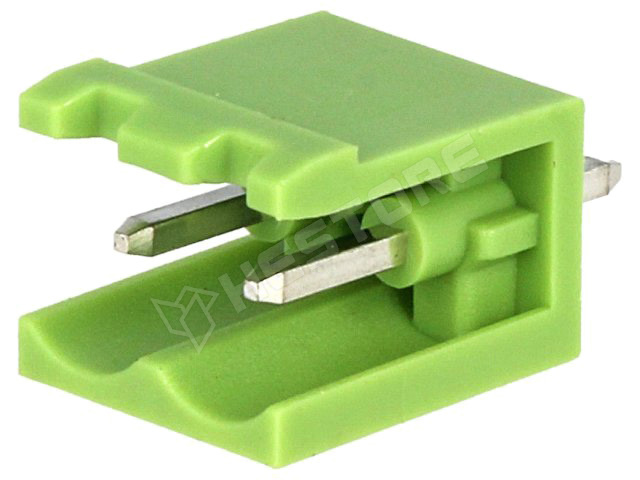

TBG-5-PB-2P-GN (CPM5.08SQA-02P)

Sorkapocs, egyenes RM5,08 2P sorolható

RoHS	no
Manufacturer	XINYA
Connector	socket
Colour	green
Pole	2
Orientation	straight
Pitch	5.08
Gender	papa
Operating temperature	-40...105°C
Connector variant	pluggable terminal block, without side walls
Number of pins	2
Electrical mounting	THT
Mechanical mounting	on PCBs
Spatial orientation	straight
Contacts pitch	5.08mm
Type of pin configuration	1x2
Rated voltage	300V
Current rating	15A
Contact plating	tinned
Number of ways	2
Conform to the norm	UL
Contact material	brass
Flammability rating	UL94V-0
Height	12mm
Connectors features	assembling possibility
Locking system	friction lock
Kind of connector	male
Korpusz anyaga	PA66

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.245.29

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	99,04 Ft
5+	61,90 Ft
10+	40,56 Ft
20+	29,72 Ft
50+	22,91 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 10000
