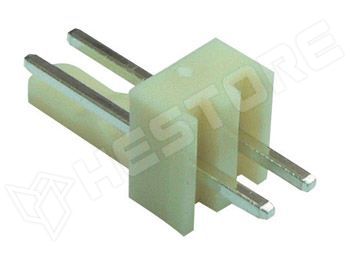

NSL25-2G

Csatlakozó (papa, 2P, NYÁK, egyenes)

RoHS	yes
Manufacturer	NINIGI
Type	papa egyenes
Connector	socket
Pole	2
Other	RM2.54
Series	NS25
Operating temperature	-25...85°C
Connector variant	wire-board
Kind of connector	male
Number of pins	2
Electrical mounting	THT
Enclosure material	Poliamid
Spatial orientation	straight
Contacts pitch	2.54mm
Type of pin configuration	1x2
Rated voltage	250V
Current rating	3A
Contact plating	tinned
Leads dimensions	0.64 x 0.64 x 3.3mm, 0.64x0.64x3.3mm
A dimension	5.08mm
B dimension	2.54mm
Max. contact resistance:	10MΩ, 10mΩ
Flammability rating	UL94V-0
Connector series	NS25
Kind of connector	male

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.240.93

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	42,08 Ft
10+	15,13 Ft
50+	9,46 Ft
100+	7,27 Ft
200+	6,13 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 350
3 workdays	> 100000
10-15 workdays	> 10000
