EC11B15244A7

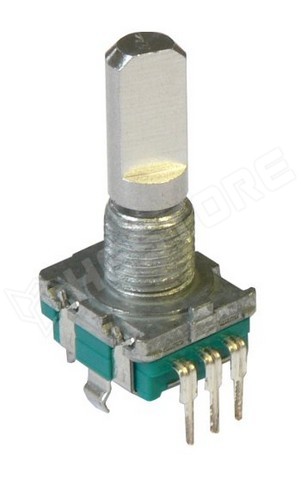

Rotary encoder 11mm, 15 pulse , switch, ALPS
Spindle (diameter/length) 6mm/20mm, metal
Thread: M7x0,75
Number of detent 30
Resolution 15
Travel 0,5mm
Rating 5Vdc/10mA
Rating of Switch 16Vdc/3A
Operating life 15000 cycles
Thread: M7x0,75
Number of detent 30
Resolution 15
Travel 0,5mm
Rating 5Vdc/10mA
Rating of Switch 16Vdc/3A
Operating life 15000 cycles
| Manufacturer partno | EC11B15244A7 |
|---|---|
| RoHS | no |
| Case | EC11B |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.220.07
Quantity (pcs):
Unit price excl. VAT
| 1+ | 1 197 Ft |
|---|---|
| 5+ | 988 Ft |
| 10+ | 951 Ft |
| 20+ | 924 Ft |
| 50+ | 894 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| On request | |
Any questions?
Contact us now!Alternatives, similar/substitute products
EC11B-20-D
Rotary encoder, incremental, with pushbutton, Ø6mm D shaft, 20PPR, 20 positions, two-phase A and B, THT
EN11-HSM3AF20
Encoder, incremental, with push switch, 15 imp/rev, 30 positions, two-phase A and B, THT
