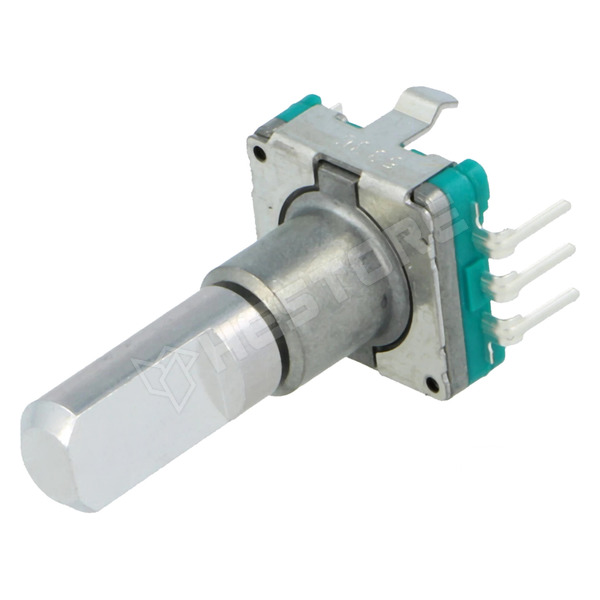

EC11E15244G1

Encoder, incremental, with push switch, 15 imp/rev, 30 positions, two-phase A and B, THT

Manufacturer partno	EC11E15244G1
RoHS	yes
Manufacturer	ALPS
Shaft diameter	6mm
Mounting	THT
Operating voltage	5V DC
Operating temperature	-40...85°C
Mechanical durability	15000 cycles
Shaft surface	D spring
Shaft length	13mm
Max. operating current	10mA
Resolution	15imp/revol.
Number of positions	30
Key stroke	0.5mm
Type of encoder	incremental
Cut depth	1.5mm
Output signal	two phase A and B
L shaft length	20mm
Encoders features	with push button

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.461.93

Add to favorites

Quantity (pcs):

Packing:
120 pcs / tray

Unit price excl. VAT

1+	746 Ft
5+	556 Ft
10+	527 Ft
20+	507 Ft
50+	488 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 2500
10-15 workdays	> 4000
