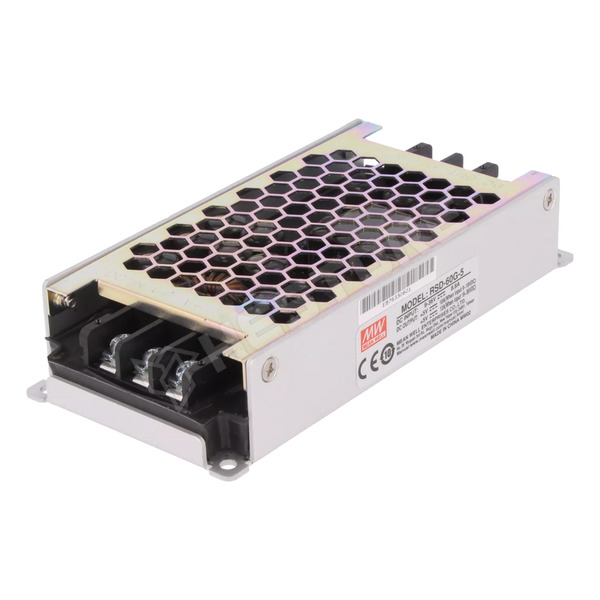

RSD-60G-5

DC-DC converter, 9...36V DC to 5V DC, 12A, 60W, isolated, built-in

Manufacturer partno	RSD-60G-5
RoHS	yes
Manufacturer	MEAN WELL
Power	60W
Output voltage	5V DC
Input voltage	9...36V DC
Series	RSD
Mounting	mounting
Operating temperature	-40...70°C
Body dimensions	128x60x25mm
Application	railway industry
Output current	12A
Protection	short circuit protection, overheating, anti-overload, anti-overvoltage, against reverse polarity
Number of outputs	1
Body dimensions	128x60x25mm
Efficiency	88%
Insulation voltage	4kV DC
Conform to the norm	EN 45545-2, EN 50121-3-2, EN 50155, IEC 60571, IEC 61373
Konverter típusa	DC/DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.492.30

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	15 690 Ft
5+	14 887 Ft
10+	14 612 Ft
20+	14 348 Ft
50+	13 961 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.
