LTC3780-STP-UP-DWN-10A

Name: LTC3780-STP-UP-DWN-10A
Brand: HESTORE
SKU: 100.489.72
Availability: InStock

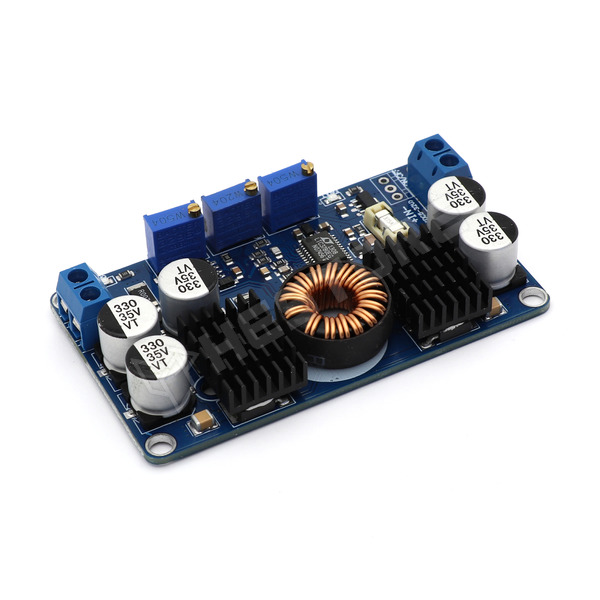

LTC3780-based DC-DC step-up step-down buck-boost converter module, 5...32 to 1...28V, 10A

Tips!
Amennyiben 0V feszültség van a kimeneten és világít a piros FAULT LED, tekerje balra az UV-SET potenciométert.

• Supply voltage range: 5...32V DC
• Output voltage: 1...28V DC
• Rated power: 80W
• Output current: max. 10A (typically 3...5A continuous, depends on cooling)
• Efficiency: up to 95%
• Input/output connectors and interfaces:
- Input: screw terminal block (VIN+, VIN-), replaceable input fuse
- Output: screw terminal block (VOUT+, VOUT-)
• Regulators: CV (output voltage), CC (current limit), UVP/UVLO setting
• Indications: status LEDs (CC/FAULT), fault indication in case of short circuit/overrun
• 4 N-MOSFET synchronous drive, smooth transition between buck/boost regions, 200...400kHz switching frequency
• Protection: short circuit protection, input fuse

• Operating temperature: –40...+85°C
• Dimensions: 77 x 45mm

Note
• Cooling suitable for 10A peak load required
• Output reverse protection is NOT built in. If the module is used for battery charging or the output is connected to a load that can feed back voltage, a Schottky diode must be installed in series in the output branch.
• The module input is NOT polarity protected! A separate Schottky diode is recommended for protection.
