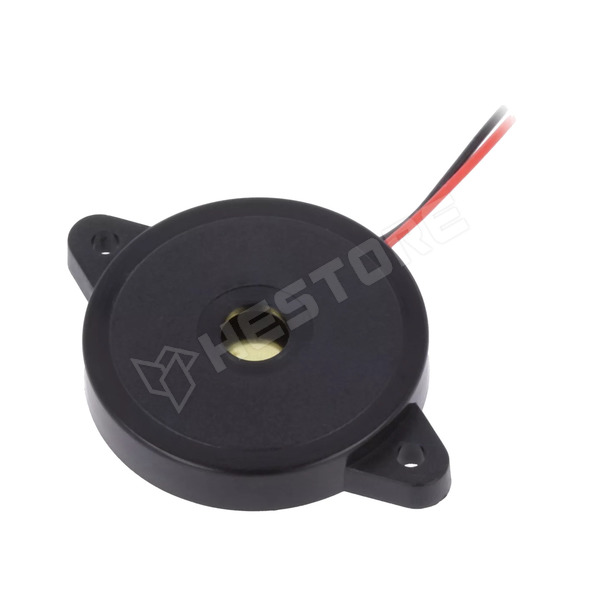

BPT3012H5.5W150-01

Piezoelectric buzzer, without internal generator, 1...30V AC, 2.5kHz

Manufacturer partno	BPT3012H5.5W150-01
RoHS	yes
Manufacturer	BESTAR
Diameter	30mm
Capacitance	25nF
Operating voltage	1...30V AC
Operating temperature	-40...80°C
Capacitance tolerance	30%
Operating current	5mA
Resonant frequency	2.5kHz
Leads	cables
Body material	ABS
Mounting holes pitch	35mm
Height	5.5mm
Type of sound transducer	piezo alarm
Sound level	75dB
Sound transducer features	without built-in generator
Capacitance measurement frequency	120Hz

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.487.71

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	615 Ft
5+	431 Ft
10+	403 Ft
20+	386 Ft
50+	370 Ft
