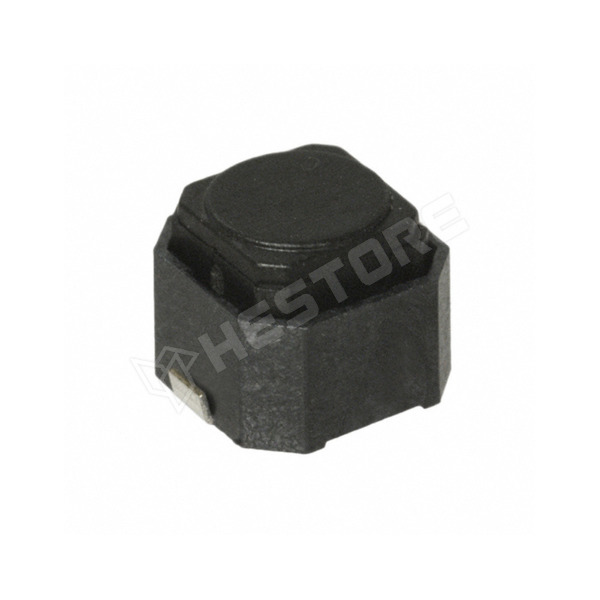

TL9210AF180Q

Tactile switch, SPST, SMD, 6 x 6 x 5mm, 5mm, black

Manufacturer partno	TL9210AF180Q
RoHS	yes
Mounting	SMD
Terminal pitch	6mm
Operating temperature	-20...80°C
Body dimensions	6 x 6 x 5mm
Illumination	none
Mechanical durability	100000 cycles
Type of switch	microswitch TACT
Stable positions number	1
Number of positions	2
Switching method	OFF-(ON)
Contacts configuration	SPST
Operating Force	1.81N
Max. contact resistance:	100mΩ
Actuator colour	black
Button height	5mm
Button shape	round
Key stroke	1.3mm
DC contacts rating @R	50mA / 12V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.486.65

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	500 Ft
5+	320 Ft
10+	294 Ft
20+	279 Ft
50+	266 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 4000
10-15 workdays	> 100
