DEM 800480K4 TMH-PW-N

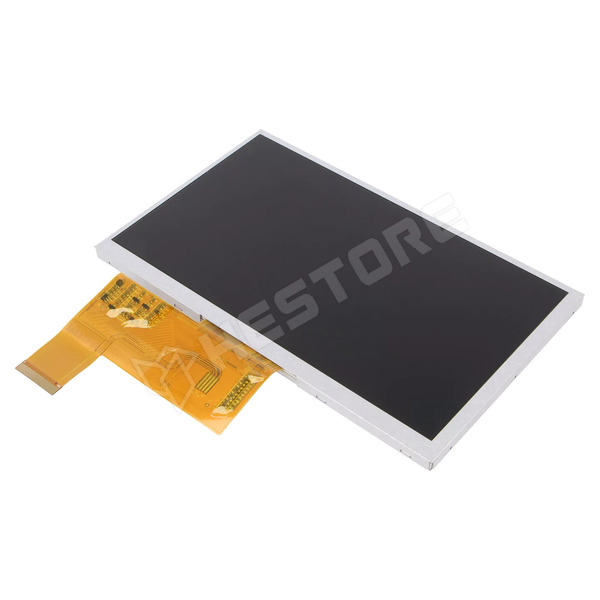

TFT display, 7", 800x480, LED backlight, 164.8x100x5.5mm

Manufacturer partno	DEM 800480K4 TMH-PW-N
RoHS	yes
Manufacturer	DISPLAY ELEKTRONIK
Number of pins	40
Luminosity	1kcd/m²
Supply voltage	3...3.6V DC
Interface	RGB
Type of pin configuration	1x40
Ribbon cable pitch	0.5mm
Dimensions	164.8x100x5.5mm
Type of display	TFT
Window dimensions (H x W)	154.08x85.92mm
Illumination	LED
Display resolution	800x480
Backlight colour	white
Screen size	7"
Contrast	500:1
No. of colours	16.7M
Kind of display used	graphical
Kind of controller	HX8264, HX8664B
Kind of display	graphical
érintőpanel	none
