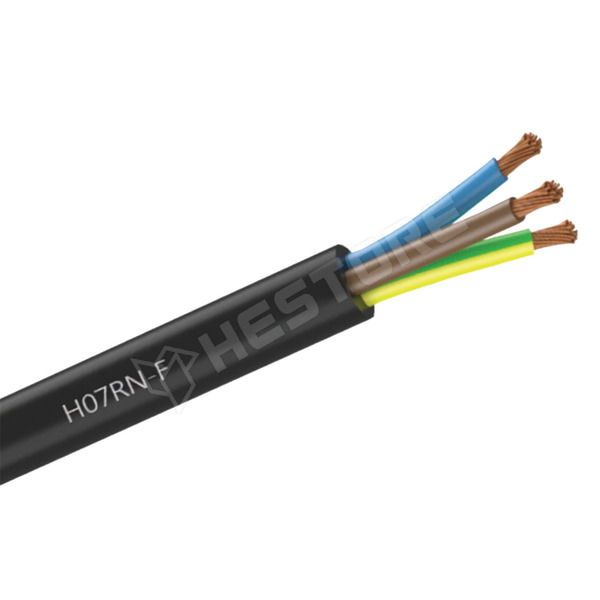

H07RN-F-3G2.5

Wire, H07RN-F, 3G2.5mm2, round, stranded, Cu, rubber, black

Manufacturer partno	1600118
RoHS	yes
Number of cores	3
Operating temperature	-25...60°C
Rated voltage	450V, 750V
Wire insulation material	rubber
Insulation colour	black
Core section	2.5mm²
Type of wire	mains
Core structure	stranded
Cable external diameter	10.9...12.5mm
Shield structure	unshielded
Cable application	indoor, external, industrial applications
Flexibility class	5
Resistance to	temperature, moisture, UV rays, to weather conditions, most of oils, mechanical stesses, hőmérsékletet, flame
Core marking	színjelölés + védőér
Wire cross-section shape	round
Kind of wire	H07RN-F
CPR standard	no classification
Earth core	yellow-green
Kind of material	no flame propagation
Kábelszerkezet	3G2.5mm²

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.483.60

Add to favorites

Quantity (m):

Unit price excl. VAT

1+	1 112 Ft
10+	893 Ft
50+	869 Ft
100+	852 Ft
200+	836 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 15
3 workdays	> 3000
