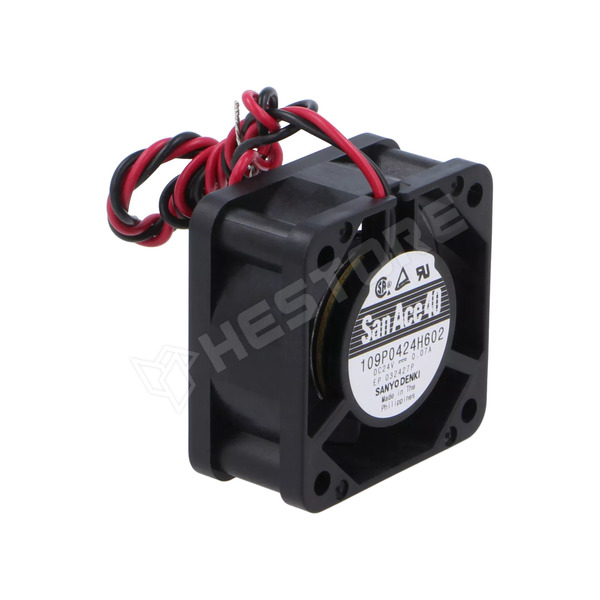

109P0424H602

Fan, DC, 24V DC, 40x40x20mm, ball bearing, 19.2m³/h, shaft

109P0424H602 / Fan, DC, 24V DC, 40x40x20mm, ball bearing, 19.2m<sup>3</sup>/h, shaft (109P0424H602 / SANYO DENKI)

Manufacturer partno	109P0424H602
RoHS	yes
Manufacturer	SANYO DENKI
Operating voltage	12...27.6V DC
Operating temperature	-20...70°C
Supply voltage	24V DC
Enclosure material	plastic
Current rating	95mA
Leads	2 leads
Min. insulation resistance	10MΩ
Flammability rating	UL94V-1
Cable length	0.32m
Type of fan	DC
Fan dimensions	40x40x20mm
Power consumption	2.28W
Fan efficiency	19.2m³/h
Noise level	37dBA
Rotational rate/speed	8700rpm
Impeller material	plastic
Additional functions	reverse polarity protection
Cable length	0.32m
Kind of fan	shaft
Kind of Bearing	ball bearing
Kind of material	flame retardant

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.481.37

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	5 560 Ft
5+	5 172 Ft
10+	5 064 Ft
20+	4 965 Ft
50+	4 828 Ft
