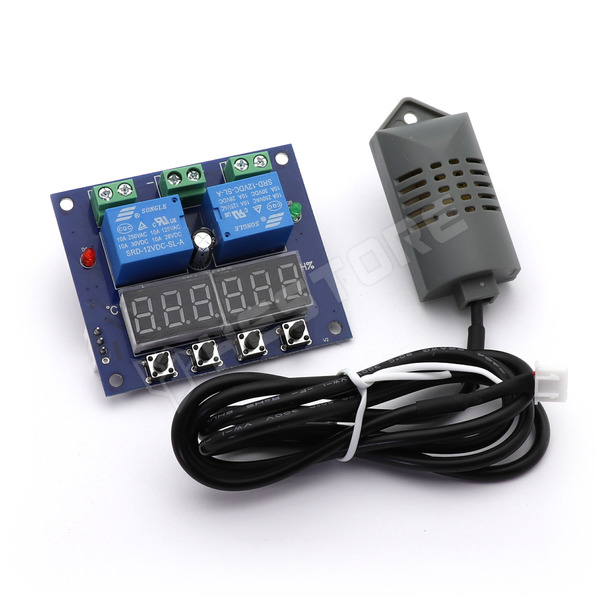

XH-M452
Temperature and humidity based control module, 12V DC, 10A, 2 relay contact outputs, NO
The module controls the output relays based on separate temperature and humidity values. Adjustable switch-on and switch-off values. The measured values are displayed with an accuracy of one tenth on the two LED 3-digit 7-segment displays.
The temperature is displayed on the left display, and the humidity on the right display.
The module can be set using the "+" and "-" buttons below the displays.
Short press of "+": current switch-on value
Short press of "-": current switch-off value
Long press of "+": set switch-on value (flashing)
Long press of "-": set switch-off value (flashing)
In the event of inactivity, the set value is saved and the display returns to the default state.
Power supply: 12V DC
Temperature measuring range: -20...60°C
Humidity measuring range: 0...100%RH
Accuracy: 0.1°C / 0.1%RH
Outputs: NO relay contact
Maximum switching current: 10A / 250V
Connectors: 5.08mm screw terminals 3x2p
Sensor cable length: 1m
Sensor dimensions: 26.5 x 61mm
Sensor mounting hole diameter: Ø3.8mm
Control electronics dimensions: 65 x 55mm
Mounting hole distances: 58 x 48mm
Mounting hole diameter: Ø3.3mm
The temperature is displayed on the left display, and the humidity on the right display.
The module can be set using the "+" and "-" buttons below the displays.
Short press of "+": current switch-on value
Short press of "-": current switch-off value
Long press of "+": set switch-on value (flashing)
Long press of "-": set switch-off value (flashing)
In the event of inactivity, the set value is saved and the display returns to the default state.
Power supply: 12V DC
Temperature measuring range: -20...60°C
Humidity measuring range: 0...100%RH
Accuracy: 0.1°C / 0.1%RH
Outputs: NO relay contact
Maximum switching current: 10A / 250V
Connectors: 5.08mm screw terminals 3x2p
Sensor cable length: 1m
Sensor dimensions: 26.5 x 61mm
Sensor mounting hole diameter: Ø3.8mm
Control electronics dimensions: 65 x 55mm
Mounting hole distances: 58 x 48mm
Mounting hole diameter: Ø3.3mm
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.481.16
Quantity (pcs):
Unit price excl. VAT
| 1+ | 2 781 Ft |
|---|---|
| 5+ | 2 508 Ft |
| 10+ | 2 445 Ft |
| 20+ | 2 392 Ft |
| 50+ | 2 322 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 5 |
| 10-15 workdays | > 2000 |
