Y3-AMP

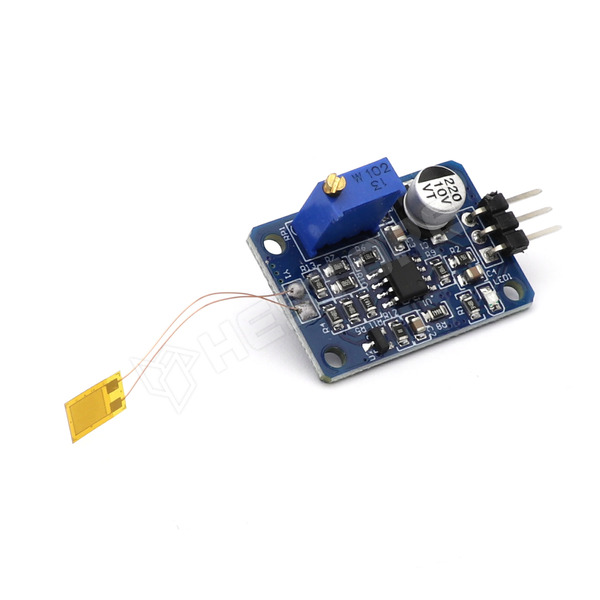

Foil resistance strain gauge module, 5V DC, analog out
Power supply: 5V DC
Output: analog 0...3.5V
Sensor chip size: 5 x 7.5mm
Sensor lead length: 25mm
Bending angle: ±30°
Resistance 350Ω
Connection: 2.54mm pin row 3pin
Module size: 20 x 30mm
Mounting hole spacing: 15 x 25mm
Mounting hole diameter: Ø2.5mm
Operating temperature: -30...80°C
Output: analog 0...3.5V
Sensor chip size: 5 x 7.5mm
Sensor lead length: 25mm
Bending angle: ±30°
Resistance 350Ω
Connection: 2.54mm pin row 3pin
Module size: 20 x 30mm
Mounting hole spacing: 15 x 25mm
Mounting hole diameter: Ø2.5mm
Operating temperature: -30...80°C
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.480.65
Quantity (pcs):
Unit price excl. VAT
| 1+ | 1 357 Ft |
|---|---|
| 5+ | 1 142 Ft |
| 10+ | 1 102 Ft |
| 20+ | 1 072 Ft |
| 50+ | 1 038 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 15 |
| 10-15 workdays | > 2000 |
