ESP32-WROOM32D-OLED096

Name: ESP32-WROOM32D-OLED096
Brand: HESTORE
SKU: 100.480.63
Availability: InStock

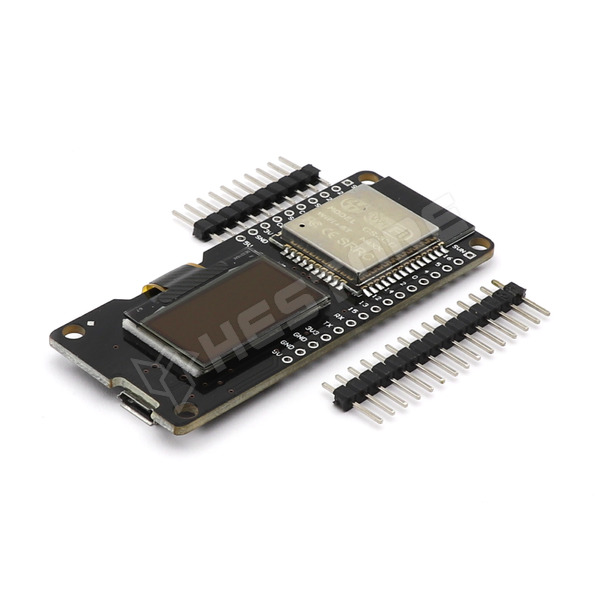

ESP32-WROOM32 development module, with 0.96inch OLED display, CP2102, micro-USB

SPI Flash: 32Mbit
Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards
Wi-Fi: 802.11b/g/n/
Interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC
IO ports: 22
Serial port speed: default 115200bps
Spectrum range: 2412~2484MHz
Antenna form: built-in PCB antenna with 2dBi gain
Security: WPA/WPA2/WPA2 Enterprise/WPS
OLED:
- 0.96inch
- SSD1306
- 128 x 64px
- Blue
- I2C (0x3C)
- SDA: GPIO5
- SCL: GPIO4

Connectors: 26pin (1 x 16p + 1 x 10p)
Pin row spacing: 25.4mm
USB connector: USB-micro
USB-TTL converter: CP2102
Operating temperature: -20...80°C
Dimensions: 65.5 x 28mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.480.63

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	4 096 Ft
5+	3 769 Ft
10+	3 684 Ft
20+	3 610 Ft
50+	3 508 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
10-15 workdays	> 2000
