MAX31855-M

Name: MAX31855-M
Brand: HESTORE
SKU: 100.480.36
Availability: InStock

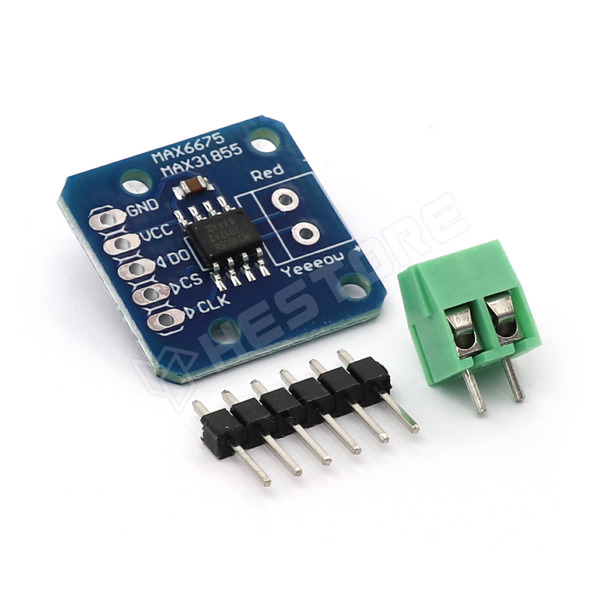

MAX31855 based K-type thermometer amplifier module, SPI, 3.0...3.6V

Supply voltage: 3.0...3.6V DC
Interface: SPI
Resolution: 0.25°C
Temperature sensor type: K type
Temperature measurement range: -200...1350°C
Terminals:
- SPI and power supply: Pin header 2.54mm (included)
- Thermometer: Screw terminal block 3.5mm (included)
Operating temperature: -40...125°C

Dimensions: 20.5 x 20.5mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.480.36

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 511 Ft
5+	1 289 Ft
10+	1 247 Ft
20+	1 215 Ft
50+	1 177 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
10-15 workdays	> 2000
