3S-20A

Name: 3S-20A
Brand: HESTORE
SKU: 100.479.78
Availability: InStock

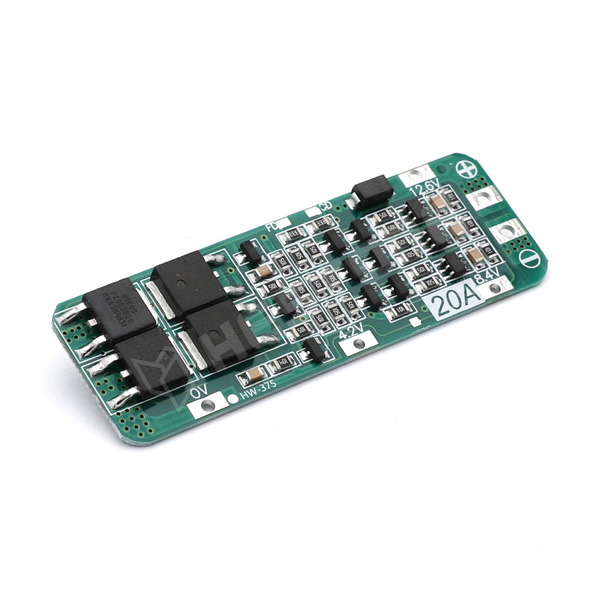

BMS module, 3S, 12.6V, 20A

Tips!
BMS modules do not replace charging circuits! The charging current is not regulated, always use a charge controller for charging!

One of the main disadvantages of lithium batteries is that they are very sensitive to the parameters of charging and discharging, especially overcharging and deep discharging.
Therefore, if we want to build a long-lasting, high-capacity energy storage, additional electronics may be necessary.
Collectively, these electronic devices are called Battery Management System or BMS.

Operating temperature	-40...50°C
Protection	Over current, Over-discharge, Overcharging, Short circuit
Operating current	10A
Dimensions	59 x 20 x 3.7mm
Max. forward impulse current	20A
Supply current	4.0...6.0μA
Type of surge arrester	DW01
Cells quantity	3
Type of rechargeable battery	Li-Ion/Polymer
Overcharge threshold	4.25...4.35 ±0.05V
Over-discharge voltage threshold	2.5V ±0.1V
Cell balancing	none
Charging voltage	12.6V
Battery contacts	soldering pads

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.479.78
