3S-60A-B

Name: 3S-60A-B
Brand: HESTORE
SKU: 100.468.31
Availability: InStock

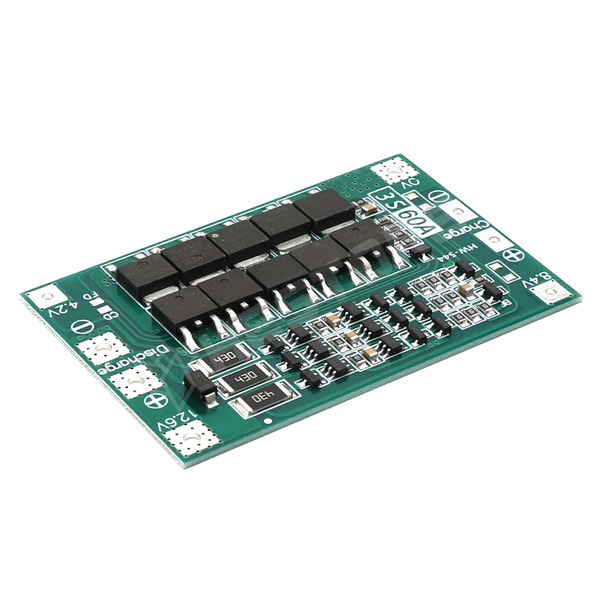

BMS module, 3S, 12.6V, 60A, with balancer

One of the main disadvantages of lithium batteries is that they are very sensitive to the parameters of charging and discharging, especially overcharging and deep discharging.
Therefore, if we want to build a long-lasting, high-capacity energy storage, additional electronics may be necessary.
Collectively, these electronic devices are called Battery Management System or BMS.

Attention! BMS modules do not replace charging circuits! The charging current is not regulated!

Operating temperature	-40...50°C
Protection	Over current, Over-discharge, Overcharging, Short circuit
Operating current	40A
Dimensions	41 x 62 x 3.4mm
Max. forward impulse current	60A
Supply current	4.0...6.0μA
Type of surge arrester	DW01
Cells quantity	3
Type of rechargeable battery	Li-Ion/Polymer
Overcharge threshold	4.28V ±0.05V
Over-discharge voltage threshold	2.4V ±0.1V
Cell balancing	HY2213-BB3A
Charging voltage	12.6V
Battery contacts	soldering pads

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.468.31

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	669 Ft
5+	482 Ft
10+	454 Ft
20+	436 Ft
50+	418 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 100
10-15 workdays	> 2000
