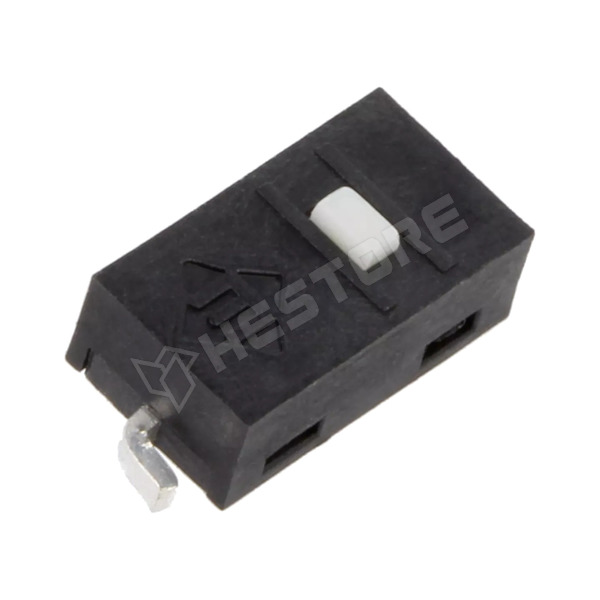

TS20100F070S

Microswitch, SNAP ACTION, 100mA/48V DC, without highlighter, SPST-NO

Manufacturer partno	TS20100F070S
RoHS	yes
Manufacturer	E-SWITCH
Series	TS2
Kind of package	reel, tape
Operating temperature	-25...85°C
Body dimensions	8.6x4.8x3mm
Leads	for soldering
Min. insulation resistance	0.1GΩ
Mechanical durability	3000000 cycles
Type of switch	microswitch SNAP ACTION
Number of positions	2
Contacts configuration	SPST-NO
Switches features	without lever
Operating Force	0.7N
Max. contact resistance:	300mΩ
Electrical life	3000000 cycles
Button marking	blank
DC contacts rating @R	0.1A / 48V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.478.94

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	481 Ft
5+	302 Ft
10+	277 Ft
20+	262 Ft
50+	249 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 10000
