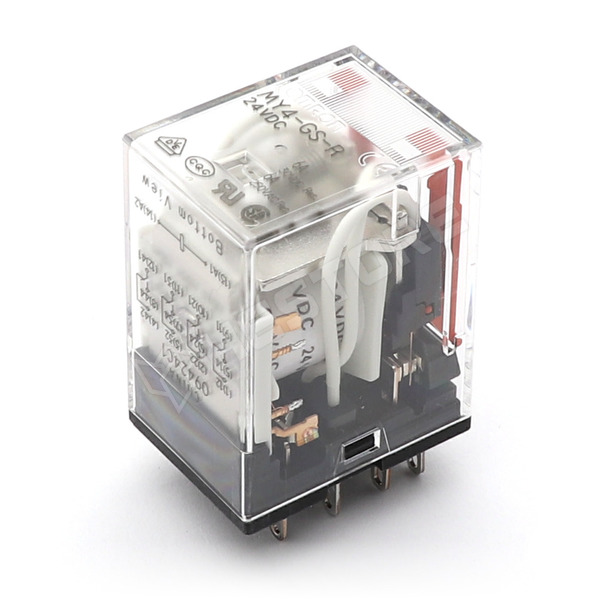

MY4-GS-R DC24

Relay, 4PDT, 24V DC, 6A / 250V AC, 6A / 30V DC

Manufacturer partno	MY4-GS-R DC24
RoHS	yes
Manufacturer	OMRON
Mounting	socket, socket
Operating temperature	-55...70°C
Body dimensions	28x21.5x36mm
Body dimensions	28x21.5x36mm
Related items	PY14-02, PYF14A-E
Leads	connectors 2,6x0,5mm
Contacts configuration	4PDT
Max. contact resistance:	100mΩ
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	6A
Switched voltage	max. 220V DC, max. 250V AC
Relay variant	industrial
Coil resistance	636Ω
Operate time	20ms
Release time	20ms
Coil power consumption	0.9W
Relay series	MY4
Contact resistance	100mΩ
Coil current	37.7mA
DC contacts rating @R	6A / 30V DC
AC contacts rating @R	6A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.475.47

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	3 882 Ft
5+	3 564 Ft
10+	3 483 Ft
20+	3 412 Ft
50+	3 315 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 1000
