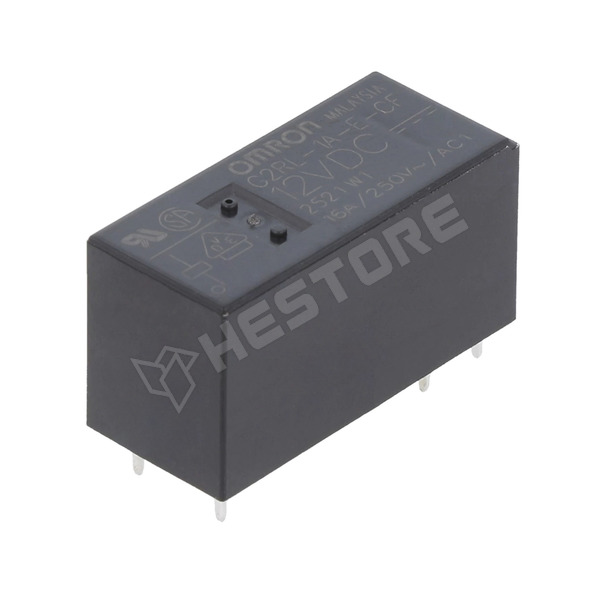

G2RL-1A-E-CF-DC12

Relay, SPST-NO, 12V DC, 12A / 250V AC, 12A / 24V DC

Manufacturer partno	G2RL-1A-E-CF DC12
RoHS	yes
Manufacturer	OMRON OCB
Mounting	PCB
Terminal pitch	3.5mm
Operating temperature	-40...85°C
Body dimensions	29x12.7x15.7mm
Leads	for PCB
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	16A
Switched voltage	max. 300V DC, max. 440V AC
Relay variant	miniature
Coil resistance	360Ω
Operate time	15ms
Release time	5ms
Relay series	G2RL
Contact resistance	100mΩ
Coil current	33.33mA
Enclosure description	standard seal
DC contacts rating @R	12A / 24V DC
AC contacts rating @R	12A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.472.34

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 191 Ft
5+	983 Ft
10+	946 Ft
20+	919 Ft
50+	889 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 4000
