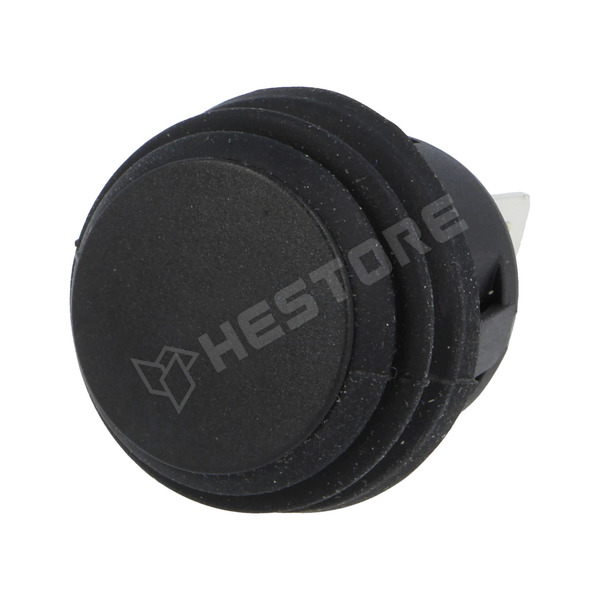

R13-527A2-02-BB

Push switch, DPST-NO, 6A/250V AC, OFF-(ON), IP65, black

Manufacturer partno	R13-527A2-02-BB
RoHS	yes
Manufacturer	SCI
Series	R13-527
Mounting	for panel mounting
Operating temperature	-25...70°C
Body dimensions	Ø17.5x18mm
Mounting hole diameter	Ø20.2mm
Leads	4,8x0,8mm connectors
Illumination	none
IP rating	IP65
Type of switch	push-button
Stable positions number	1
Number of positions	2
Switching method	OFF-(ON)
Body material	polyamide
Contacts configuration	DPST-NO
Max. contact resistance:	50mΩ
Flammability rating	UL94V-2
Actuator colour	black
Button shape	round
Panel thickness	max. 3mm
AC test voltage	1.5kV
Terminals plating	silver plated
AC contacts rating @R	6A / 250V AC
