6425.4121

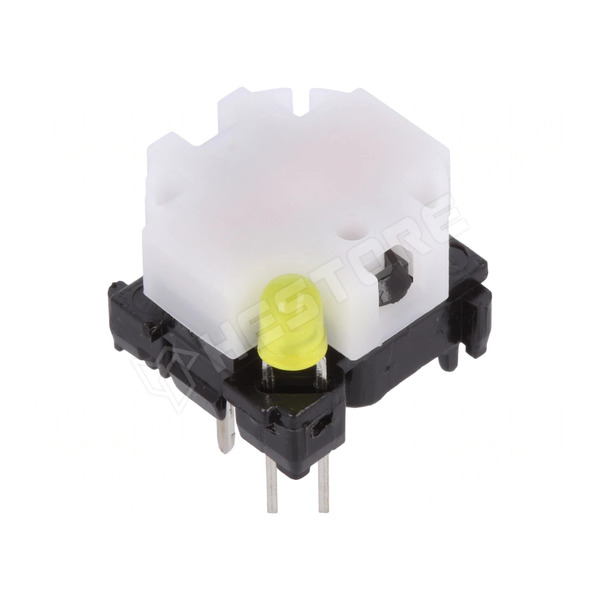

Push switch, keyboard, OFF-(ON), SPST-NO, THT, yellow LED

Manufacturer partno	6425.4121
RoHS	yes
Manufacturer	Marquardt
Series	6425
Mounting	THT
Operating temperature	-20...70°C
Body dimensions	14.4x14.4x10.7mm
Body colour	black
Related items	829.000.011, 829.000.021
Contact plating	silver plated
Leads	for PCB
Illumination	LED
Type of switch	keypad
Stable positions number	1
Number of positions	2
Switching method	OFF-(ON)
Contacts configuration	SPST-NO
Operating Force	0.7N
Max. contact resistance:	250mΩ
Body colour	black
Actuator colour	white
Backlight colour	yellow
DC contacts rating @R	0.1A / 28V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.469.20

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 598 Ft
5+	1 373 Ft
10+	1 329 Ft
20+	1 296 Ft
50+	1 255 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 100

Any questions?

Recommended accessory products

MARQUARDT 829 000 011
Button cap, 15.5x15.5mm, black, with hole

MARQUARDT 829 000 031
Button cap, 15.5x15.5mm, grey, with hole
