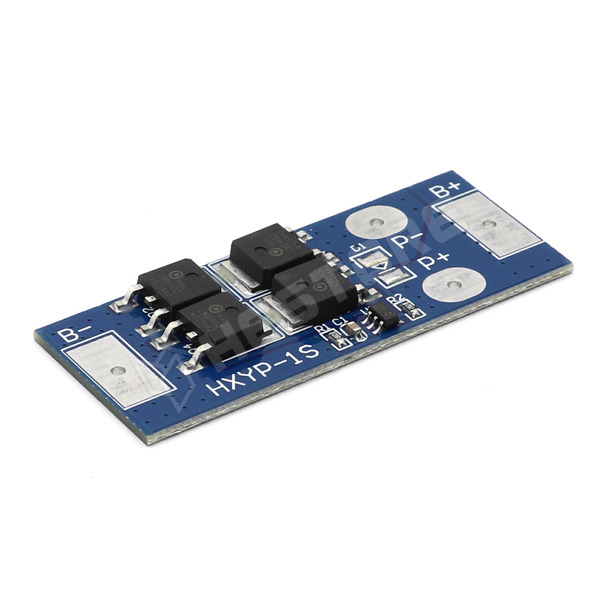

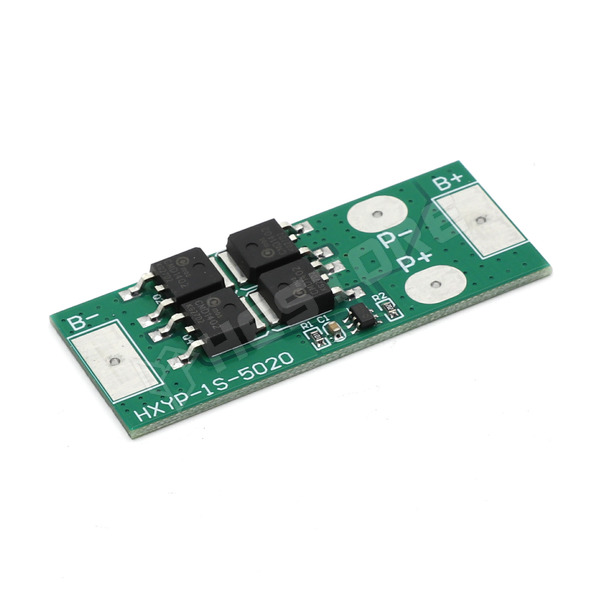

HXYP-1S-5020
BMS module, 1S, 3.7V, 16A
One of the main disadvantages of lithium batteries is that they are very sensitive to the parameters of charging and discharging, especially overcharging and deep discharging.
Therefore, if we want to build a long-lasting, high-capacity energy storage, additional electronics may be necessary.
Collectively, these electronic devices are called Battery Management System or BMS.
Attention! BMS modules do not replace charging circuits! The charging current is not regulated!
| Protection |
Over current, Over-discharge, Overcharging, Short circuit |
| Operating current |
16A |
| Dimensions |
50 x 20 x 3.7mm |
| Max. forward impulse current |
34A |
| Supply current |
3.0...6.0μA |
| Type of surge arrester |
HY2110-GB |
| Cells quantity |
1 |
| Type of rechargeable battery |
Li-Ion/Polymer |
| Overcharge threshold |
4.28V ±0.05V |
| Over-discharge voltage threshold |
2.5V ±0.1V |
| Cell balancing |
none |
| Charging voltage |
4.2V |
| Battery contacts |
soldering pads |
