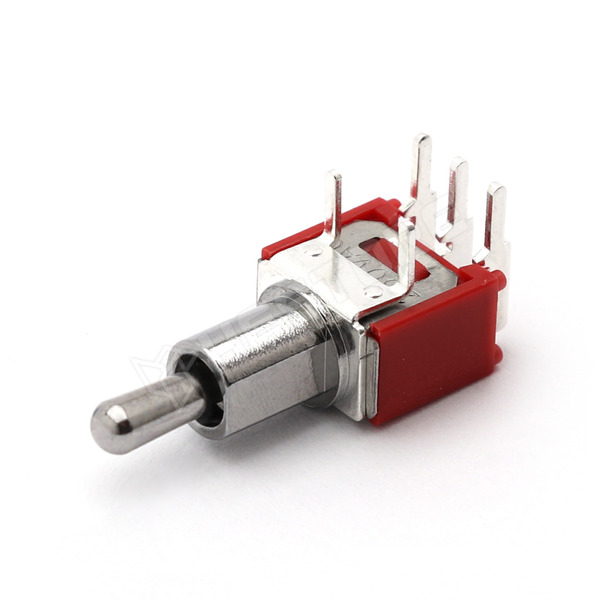

ST-0-103-C03-N003-RS

Sub-miniature toggle switch, SP3T, 3A/125VAC, 1.5A/250VAC, ON-OFF-ON

RoHS	yes
Manufacturer	YuenFung
Operating temperature	-25...85°C
Body dimensions	8.3x5.2x8.6mm
Leads	for PCB, angled
Min. insulation resistance	1000MΩ
Type of switch	toggle
Stable positions number	3-position
Switching method	ON-OFF-ON
Contacts configuration	SP3T
Mounting hole diameter	Ø5mm
AC contacts rating	1.5A / 250VAC, 3A / 125VAC
Max. contact resistance:	20mΩ
Összes pozíciók száma	3
