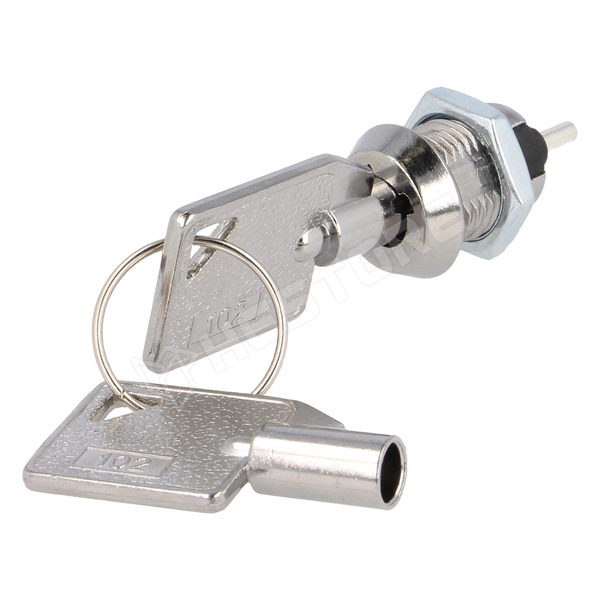

S-102-2

Key switch, SPST, 2 stable positions, OFF-ON, identical keys

Manufacturer partno	S-102-2
RoHS	yes
Manufacturer	HIGHLY
Number of terminals	2
Mounting hole diameter	Ø12mm
Number of outputs	2
Contact plating	silver plated
Mechanical rotation angle	90°
Type of switch	key switch
Stable positions number	2
Number of positions	2
Switching method	OFF-ON
Body material	zinc alloy
Contacts configuration	SPST
Switches features	the key can be removed at any position, key with the same code
Overall length	23mm
Terminals plating	silver plated
Body plating	chromium
Kind of wrench	unsymmetrical
AC contacts rating @R	1A / 110V AC
Key shape	round

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.463.90

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 006 Ft
5+	805 Ft
10+	771 Ft
20+	748 Ft
50+	722 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 2000
