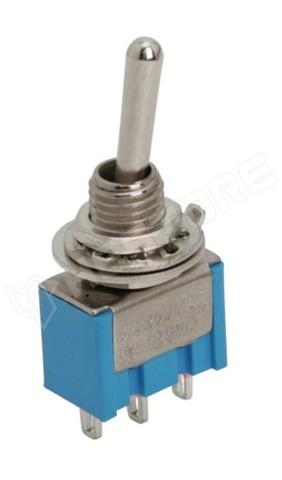

KNX1 (ST302, MTS-1)

Kapcsoló (nyelves, 1P, 3A/250V, ON-ON)

Manufacturer partno	MTS-102
RoHS	yes
Case	KNX
Operating temperature	-55...85°C
Body dimensions	12.5 x 6.5 x 9.5mm, 12.5x6.5x9.5mm
Leads	for soldering
Type of switch	toggle
Stable positions number	2-position
Number of positions	2
Switching method	ON-ON
Contacts configuration	SPDT
Mounting hole diameter	Ø6mm
AC contacts rating	3 A / 250 VAC
Max. contact resistance:	20mΩ
Knob height	11mm
Electrical life	20000cycles
Actuator material	metal
AC contacts rating @R	3A / 250V AC
Összes pozíciók száma	2
