LAS1Y-11Y/2

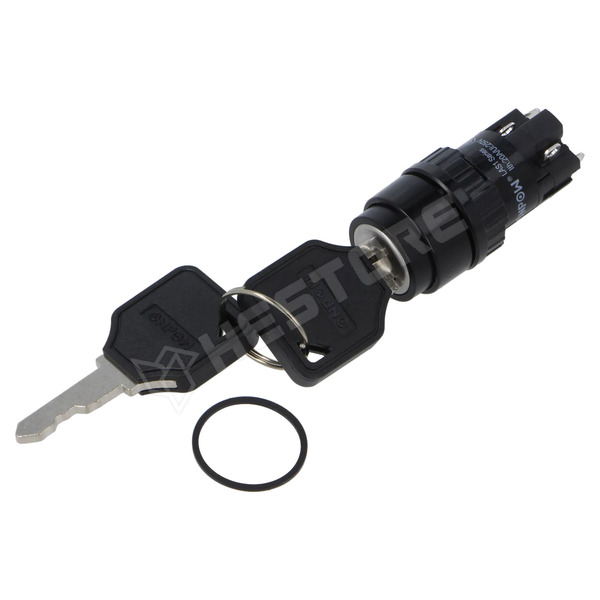

Key switch, ON-ON, SPDT, 2 stable positions, Ø16mm mounting hole

Manufacturer partno	LAS1Y-11Y/2
RoHS	yes
Manufacturer	ONPOW
Number of terminals	4
Operating temperature	-20...55°C
Body colour	black
Mounting hole diameter	Ø16mm
Number of outputs	4
Leads	for soldering
Illumination	none
IP rating	IP40
Mechanical durability	200000 cycles
Mechanical rotation angle	90°
Test voltage	2kV
Type of switch	key switch
Stable positions number	2
Number of positions	2
Switching method	ON-ON
Contact material	silver alloy
Body material	plastic
Contacts configuration	SPDT
Switches features	the key can be removed at any position
Max. contact resistance:	50mΩ
Body colour	black
Electrical life	50000 cycles
Kind of wrench	unsymmetrical
DC contacts rating @R	1A / 24V DC
AC contacts rating @R	0.5A / 220V AC
Key shape	flat, smooth
