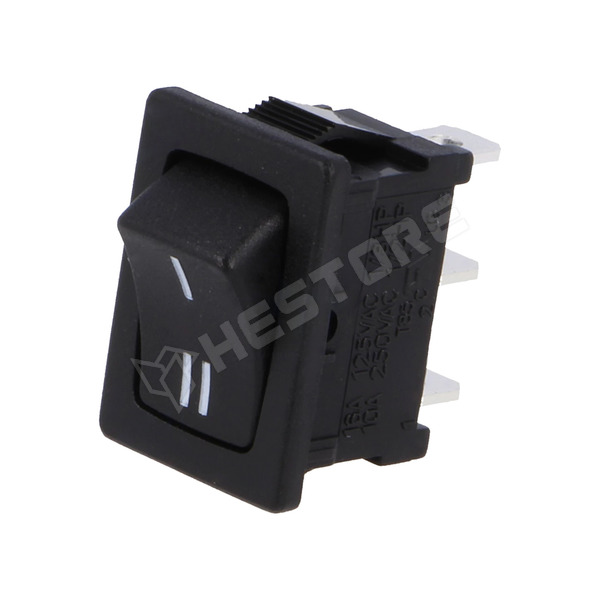

R13-66C-02-BB-5D

Rocker switch, ROCKER, SPDT, ON-ON, 2 stable positions, 10A / 250V AC, UL94V-2

Manufacturer partno	R13-66C-02-BB-5D
RoHS	yes
Manufacturer	SCI
Series	R13-66-AC
Operating temperature	-20...85°C
Body colour	black
Mounting hole diameter	19.4x13mm
Related items	R13-66A-29
Shape	rectangular
Leads	4,8x0,8mm connectors
Illumination	none
Type of switch	ROCKER
Stable positions number	2
Number of positions	2
Switching method	ON-ON
Body material	polyamide
Contacts configuration	SPDT
Max. contact resistance:	50mΩ
Flammability rating	UL94V-2
Body colour	black
Electrical life	6000 cycles
Actuator colour	black
Button marking	I-II
Panel thickness	max. 3mm
AC contacts rating @R	10A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.450.06

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	499 Ft
5+	319 Ft
10+	293 Ft
20+	278 Ft
50+	264 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 500
