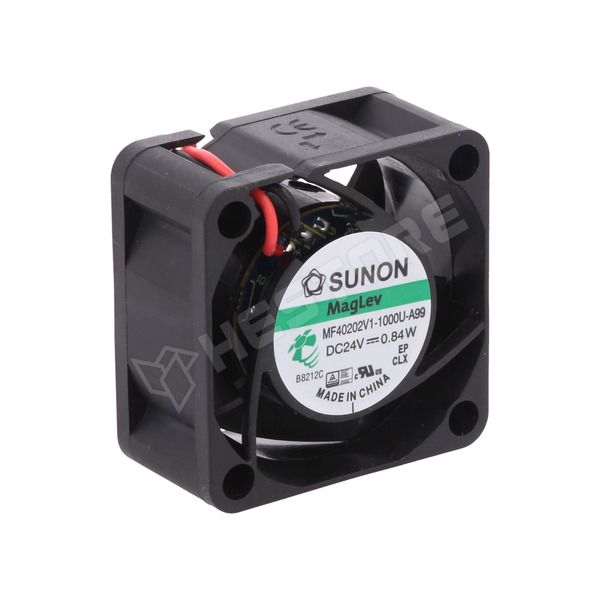

MF40202V1-1000U-A99

Fan, DC, 24V DC, 40x40x20mm, Vapo, 15.04m³/h, shaft, axial

MF40202V1-1000U-A99 / Fan, DC, 24V DC, 40x40x20mm, Vapo, 15.04m<sup>3</sup>/h, shaft, axial (MF40202V1-1000U-A99 / SUNON)

Manufacturer partno	MF40202V1-1000U-A99
RoHS	yes
Manufacturer	SUNON
Operating voltage	8...27.6V
Operating temperature	-10...70°C
Supply voltage	24V DC
Enclosure material	thermoplastic
Current rating	32mA
Leads	2 leads
Min. insulation resistance	10MΩ
IP rating	A
Flammability rating	UL94V-0
Wire size	26AWG
Cable length	0.305m
Type of fan	DC
Fan dimensions	40x40x20mm
Power consumption	0.77W
Fan efficiency	15.04m³/h
Noise level	25.5dBA
Rotational rate/speed	7000rpm
Impeller material	thermoplastic
Static pressure	5.59mm H₂O
Fan motor	brushless DC
Additional functions	Autorestart
Cable length	0.305m
Kind of fan	axial, shaft
Kind of Bearing	Vapo
Vezeték mérete	26AWG
