ARCL-UNO-CH340

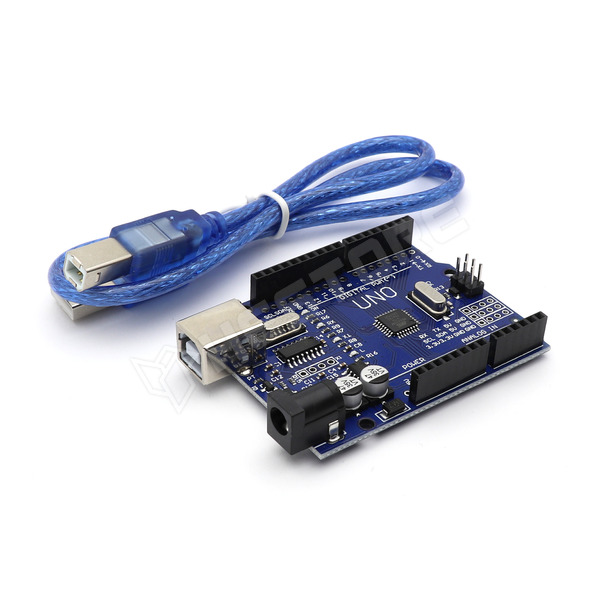

UNO developement board CH340
Figyelem! A modul CH340-es soros illesztőt tartalmaz FT232RL illetve ATmega16U2 helyett!
------------
Microcontroller: ATmega328
Operating Voltage: 5V/3.3V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM: 2 KB (ATmega328)
EEPROM: 1 KB (ATmega328)
Clock Speed: 16 MHz
Length: 68.6 mm
Width: 53.4 mm
Weight: 25 g
------------
Microcontroller: ATmega328
Operating Voltage: 5V/3.3V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM: 2 KB (ATmega328)
EEPROM: 1 KB (ATmega328)
Clock Speed: 16 MHz
Length: 68.6 mm
Width: 53.4 mm
Weight: 25 g
| RoHS | no |
|---|
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.366.20
Quantity (pcs):
Unit price excl. VAT
| 1+ | 1 869 Ft |
|---|---|
| 5+ | 1 633 Ft |
| 10+ | 1 585 Ft |
| 20+ | 1 547 Ft |
| 50+ | 1 500 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 75 |
| 10-15 workdays | > 250 |
