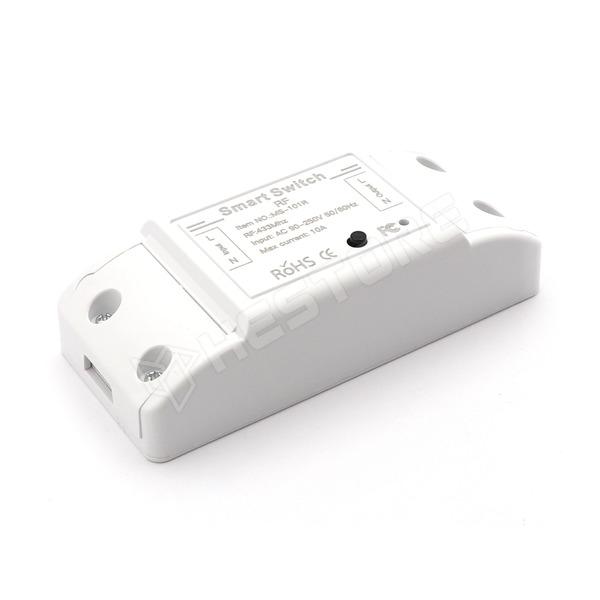

ARF433-MS-101R
Relay RF switch receiver module, 433MHz, 1 channel, 90...250V AC, 10A
The button on the receiver can also be used for pairing and switching the output on and off.
Pairing:
Press the button on the receiver five times. The LED will flash rapidly and the output will turn on and off twice. Press the button on the transmitter you want to pair.
6 transmitters can be connected to one receiver.
Delete pairing:
Press the button on the receiver ten times.
The LED flashes four times, the output turns on and off four times.
Pairing:
Press the button on the receiver five times. The LED will flash rapidly and the output will turn on and off twice. Press the button on the transmitter you want to pair.
6 transmitters can be connected to one receiver.
Delete pairing:
Press the button on the receiver ten times.
The LED flashes four times, the output turns on and off four times.
| Manufacturer partno | MS-101R |
|---|---|
| Frequency | 433.92MHz |
| Body dimensions | 89 x 39 x 25mm |
| Supply voltage | 90...250V AC |
| Switched voltage | max 250V AC |
| Switched current | max. 10A (for resistive load) |
| Operating modes | ON-OFF |
| Communictions protocol | ARF433 |
| Number of stored remote controls | 6 |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.458.54
Quantity (pcs):
Unit price excl. VAT
| 1+ | 3 663 Ft |
|---|---|
| 5+ | 3 353 Ft |
| 10+ | 3 276 Ft |
| 20+ | 3 209 Ft |
| 50+ | 3 117 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 10 |
| 10-15 workdays | > 10000 |
