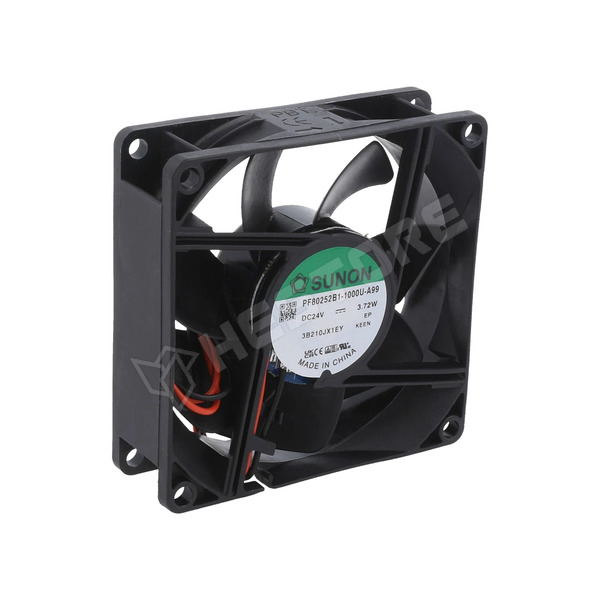

PF80252B1-1000U-A99
Fan, DC, 24V DC, 80x80x25mm, ball bearing, 102m3/h, shaft, axial
| Manufacturer partno | PF80252B1-1000U-A99 |
|---|---|
| RoHS | no |
| Manufacturer | SUNON |
| Operating voltage | 10...27.6V |
| Operating temperature | -10...70°C |
| Supply voltage | 24V DC |
| Enclosure material | thermoplastic |
| Current rating | 0.155A |
| Leads | 2 leads |
| Min. insulation resistance | 10MΩ |
| Flammability rating | UL94V-0 |
| Cable length | 0.315m |
| Type of fan | DC |
| Fan dimensions | 80x80x25mm |
| Power consumption | 3.72W |
| Fan efficiency | 102m3/h |
| Noise level | 45.5dBA |
| Rotational rate/speed | 4800rpm |
| Impeller material | thermoplastic |
| Fan motor | brushless DC |
| Additional functions | Autorestart |
| Cable length | 0.315m |
| Kind of fan | axial, shaft |
| Kind of Bearing | ball bearing |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.458.34
Quantity (pcs):
Packing:
25 pcs / carton
25 pcs / carton
Unit price excl. VAT
| 1+ | 4 773 Ft |
|---|---|
| 5+ | 4 418 Ft |
| 10+ | 4 322 Ft |
| 25+ | 4 237 Ft |
| 50+ | 4 118 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 3 |
| 3 workdays | > 4000 |
