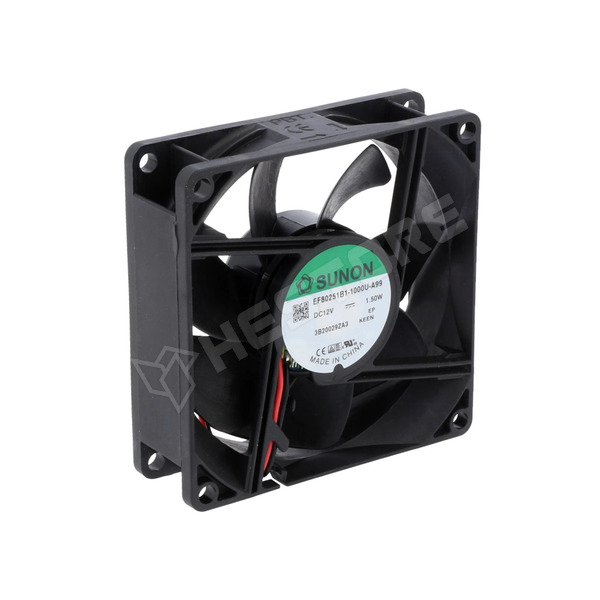

EF80251B1-1000U-A99

Fan, DC, 12V DC, 80x80x25mm, ball bearing, 69.5m³/h, shaft, axial

EF80251B1-1000U-A99 / Fan, DC, 12V DC, 80x80x25mm, ball bearing, 69.5m<sup>3</sup>/h, shaft, axial (EF80251B1-1000U-A99 / SUNON)

Manufacturer partno	EF80251B1-1000U-A99
RoHS	yes
Manufacturer	SUNON
Weight	75g
Operating voltage	8...27.6V
Operating temperature	-10...70°C
Supply voltage	12V DC
Enclosure material	thermoplastic
Current rating	0.065A
Leads	2 leads
Min. insulation resistance	10MΩ
Flammability rating	UL94V-0
Wire size	24AWG
Cable length	315mm
Type of fan	DC
Fan dimensions	80x80x25mm
Power consumption	1.56W
Fan efficiency	69.5m³/h
Noise level	33dBA
Rotational rate/speed	3200rpm
Impeller material	thermoplastic
Fan motor	brushless DC
Additional functions	Autorestart
Cable length	315mm
Kind of fan	axial, shaft
Kind of Bearing	ball bearing
Vezeték mérete	24AWG

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.445.72

Add to favorites

Quantity (pcs):

Packing:
25 pcs / carton

Unit price excl. VAT

1+	2 101 Ft
5+	1 856 Ft
10+	1 804 Ft
25+	1 762 Ft
50+	1 709 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 2500
